Pultrusion FRP Rectangular / Square Tube Fiberglass cross arm

Product Description

Product Description
Product Description
Pultrusion FRP Rectangular / Square Tube Fiberglass cross arm
Pultruded Fiberglass tube is a proprietary combination of fiberglass reinforcements and thermosetting polyester or vinyl ester resin systems. FPR tube is produced in more than 100 standard shapes.
All Pultruded Fiberglass tube have a surface veil to protect against glass fibers penetrating the resin surface in service and to increase corrosion and UV resistance.
Date sheet of Fiberglass cross armIf there is no size you need of fiberglass tube, please contact us for more size we have mold of tube.

Square tube	Size	Weight	Round tube	Size	Weight
		25.4*25.4*3.2		535.00		D19*2.5	245.00
		30*30*5.0		950.00		D22.4*2.5	296.00
		38*38*3.2		880.00		D24*2.5	320.00
		38*38*6.4		1540.00		D25.4*2.5	340.00
		40*40*4.0		1155.00		D32*3.0	550.00
		40*40*6.0		1550.00		D38*3.0	625.00
		44*44*3.2		990.00		D38*6.4	1200.00
		44*44*6.4		1830.00		D40*3.0	665.00
		45*45*4.0		1245.00		D40*4.0	858.00
		50*50*4.0		1400.00		D44*4.0	950.00
		50*50*5.0		1710.00		D48.3*5.0	1300.00
		50*50*6.4		2110.00		D50*4.0	1090.00
		50*25*4.0		1020.00		D50*5.0	1340.00
		53*25*3.0		820.00		D50*6.4	1650.00
		54*54*5.0		1860.00		D76*6.4	2640.00
		60*60*5		2090.00		D89*6.4	3140.00

The square fiberglass cross arm

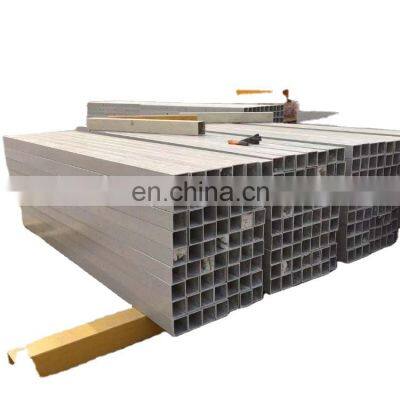

The fiberglass frp tube
Our factory and production process of fiberglass tube
The packing of fiberglass tube
Any purchase need about Pultrusion FRP Rectangular / Square Tube Fiberglass cross arm , welcome contact me freely
