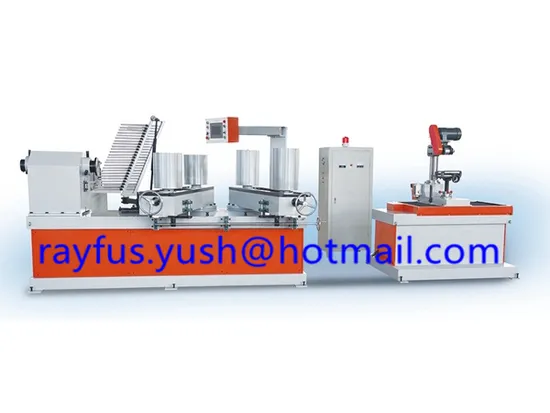

Paper Tube Making Machine, Printing Unit Optional

Product Description

Paper Tube Making Machine 1) The main body is made of thick and heavy steel plate after CNC cutting and welding. The frame is stable and not easy to deform, and the vibration is small.
2) The main drive uses hard tooth surface full oil bath chain drive, low noise, low heat, high speed, high torque.
3) The main motor adopts vector type high torque inverter speed regulation.
4) CNC synchronous chasing system, the cutting table is driven by precision ball screw and high performance servo motor.
5) Equipped with pulse fixed length control and feedforward compensation function to ensure the same cutting length under different host running speeds.
6) Using imported PLC numerical control system control, accurately improve the overall efficiency.
7) Configure a new operation panel and a large-size color touch screen man-machine interface operation. .
8) The overall paper feeding frame, rubber-coated rubber frame and paper guiding device integrated linkage device, the efficiency is improved by 60%.
9) Modular electrical layout design, use, maintenance, maintenance is more convenient and more scientific.
Technical Parameters:

Standard Paper	3~25 layers
Inner Diameter	30~200mm
Thickness	1~15mm
Design Speed	25m/min
Length Control	PLC
Cutting Length	1~5m
Cutting Method	CNC Auto-tracking to cut
Wrapping Head	4-head Double-belt
Gluing Type	Double-side Gluing
Control Type	Inverter Control
Power & Voltage	About 15kw, 380V, 50Hz, 3-Phase
Dimension	About 20000*10000*2500mm
Operator	1~3 workers
Delivery Time	About 45 working days
