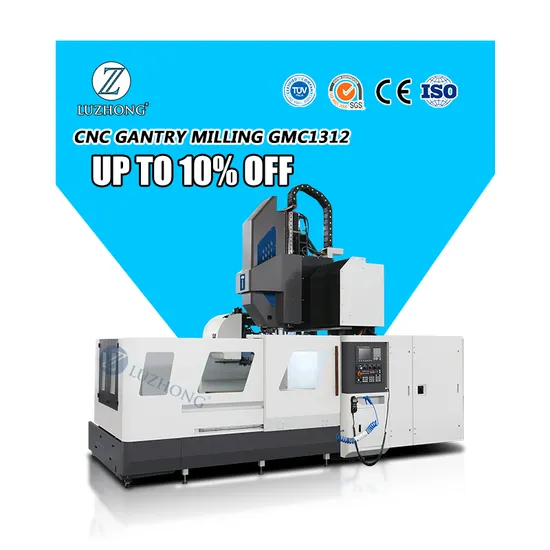

Machine Tool GMC Gantry GMC1312 CNC Boring and Milling Machine

Product Description

Machine Tool GMC Gantry GMC1312 CNC Boring and Milling Machine Product Description
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Automatic lubrication system
Application:
Suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .
It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc. Product Parameters
Product main technical specifications:

Specifications	Units	GMC1312	GMC1612	GMC2012	GMC1614
Table size(W*L)	mm	1400*1050	1600*1050	2000*1050	1200*1700
X axis travel	mm	1350	1650	2100	1600
Y axis travel	mm	1200	1200	1200	1500
Z axis travel	mm	700	700	700	800
Gantry width/passing height	mm	W:1230/H:860	W:1230/H:860	W:1230/H:860	W:1500/H:1030
Table load	t	1	2.5	4	2.5
Distance between spindle nose and table surface	mm	120-820	120-820	120-820	150~950
T slot(number-width*pitch)	-	7-22*140	7-22*140	7-22*140	7-22*170
Spindle taper	-	BT40	BT40	BT40	BT50 /190
Spindle speed	r/min	8000	8000	8000	6000
Rapid traverse speed	m/min	24/24/24	24/24/24	24/24/24	15
Cutting feed speed	m/min	10	10	10	10
Main motor power	kw	11/15	11/15	11/15	15/18.5
Tool magazine		Arm24	Arm24	Arm24	Arm24
Positioning accuracy	mm	X/Y 0.0075 Z 0.015
Repeat positioning accuracy	mm	0.005
Overall dimension(L*W*H)	mm	4300*3200*3600	4300*3200*3600	4300*3200*3600	5900*4200*4200
Machine weight(about)	t	8.5	10.5	13.5	15.5

Machine Standard Details

MACHINE CONSTRUCT High strength high quality HT300 cast iron	CONTROL SYSTEM Standard: FANUC
SPINDLE 1.TAIWAN precision spindle. 2.BT40 spindle 8000rpm.	SPINDLE RING COOLING Standard with Spindle ring cooling function.
TAIWAN TOOL MAGAZINE 1.Taiwan OKADA arm type 24 tool magazine. 2. Tool change time only 3 seconds.	LEAD SCREW 1.Taiwan precision lead screw. 2. Imported bearings.
GUIDERAIL 3 axis linear rail	AIR STORAGE TANK Air storage tank to ensure the stability of spindle tool change
Nitrogen balance cylinder Standard with nitrogen balance cylinder for machine counterweight	AIR GUN AND WATER GUNHigh-pressure air guns and high-pressure water guns
PNEUMATIC COMPONENTS Standard with AirTAC Pneumatic Components	SCHNEIDERELECTRICAL COMPONENTS 1. with Schneidersafety electrical components 2. quick plug as standard
AIR CONDITIONERwith Industrial electrical cabinet air conditioner. Cooling the electric box better.	LUBRICATION SYSTEM HERG Automatic centralized lubrication device.
TESTING Each machine passed Renishaw laser interferometer testing	TESTING Each machine passed Renishaw ballbar testing
CHIP CONVEYOR 2 screw type chip conveyor and 1 Chain type chip conveyor

Machine Optional Details
Company Profile
Shandong Luzhong Machine Tool has : Shandong Luzhong Machine Tool has :
More than 100,000m² of the factory with more than 200 workers.
Strictly QC control with more than 24 steps testing processes.
30+ years CNC machine manufacture experience factory.
24 hours online service at any time.
Trade with customers in more than 150 countries around the word.
Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC ect.
Support ODM OEM.
Warranty time is 18 months.
Shandong Luzhong Machine Tool Co.,Ltd. Has got many international certifications such as ISO, WIPO, CE, BV, TUV, SGS, and patents. Our machines have been exported to more than 100 countries and regions, covering North America, Europe, Europe, South America, Middle East, and Southeast Asia. And we provide long-term overseas technical guidance and after-sales service for these countries.
Adhering to the "Best Machine by LUZHONG" purposes, We provides better quality machines, more efficient and thoughtful after -sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
