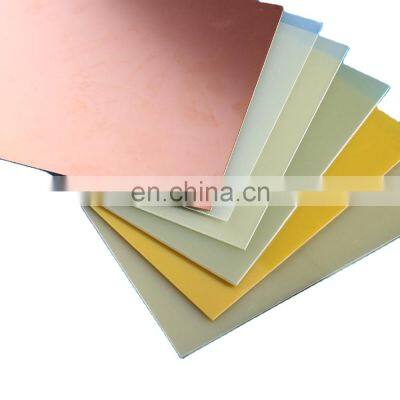

Insulated Materials fiberglass epoxy plate FR4/ G10 copper sheet/ board

Product Description

Product Description
Insulated Materials fiberglass epoxy plate FR4/ G10 copper sheet/ boardProduct DescriptionDescription/ nsulated Materials fiberglass epoxy plate FR4/ G10 copper sheet/ board: G10/FR4 Epoxy Glass Fabric Laminated Sheet, a versatile, all around insulating material, it’screated from alkali-free glass cloth that has been impregnated with an epoxy resin underheat and pressure process, which meets UL-94 requirement Features/ Insulated Materials fiberglass epoxy plate FR4/ G10 sheet/ copper board: Better insulating properties than Fish Paper (Vulcanized Fiber) •Excellent Strength properties •Anti-Fire properties •Retains 50% flexural strength at 150’C •Performs special well in humid environments Application/ Insulated Materials fiberglass epoxy plate FR4/ G10 sheet/ board:Sensitive electronic equipment Circuit Board manufacturing Relays and Switches Communication systems Mechanical and appliances lines Technical Data/ Insulated Materials fiberglass epoxy plate FR4/ G10 copper sheet/ board:ITEMUNITVALUEG10FR4Densityg/cm32.22.2Warpage≤Thickness:3~6mmThickness:6~8mmThickness:>8mmmm 1086 1086Flexural strength perpendicular to lamination ≥LengthwiseTransverse directionMPa 340250 340250Impact strength (charpy,Lengthwise)≥kJ/m23737Adhesion strength≥N65006500Insulation resistance≥Under normal conditionAfter impregnated in water at 24hΩ1×10125×1010 1×10125×1010 Related Products FR4/ G10 rods& processing parts Packaging & Shipping
