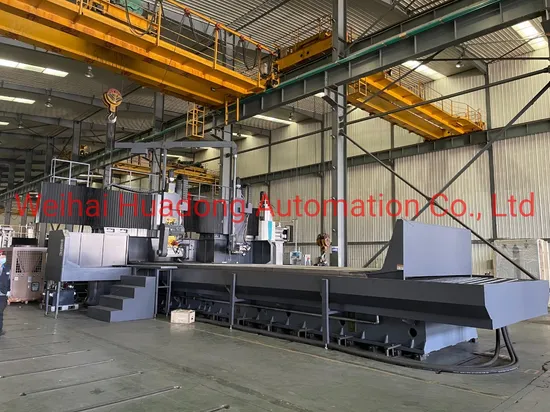

High Quality New Upgraded Fixed Beam Gantry Guideway Grinding Machine

Product Description

1.Machine Features The machine adopts gantry layout,consisting of double columns,beams and bed body;
The beam adopts the structure of ladder beam,the steel guideway is inlaid and pasted locally.the whole rigidity is strong and the mechanical property is good with use of roller block.
The spindle of grinding head adopts static and dynamic pressing tile structure,which has the advantanges of long life,high movement precision and good anti-vibration performance.the worktable is driven by oil cylinder,stepless speed regulation,stable movement and low noise.
the main motor of hydraulic station adopts servo motor ,and the flow varies with the speed of motor,saving energy and high efficiency.
vertical grinding head rotation with gear disk positioning,360*1°
2.Details parameters

MC(K)W53 series parameters
Specifications		MC(K)W5316A	MC(K)W5320A	MC(K)W5325A	MC(K)W5330A	MC(K)W5335A
table width	mm	1250	1600	2000	2500	2500
table length	mm	2000/2500/3500/4000	2500/3500/4500 /6000/8000	3500/4500/6000/8000/ 10000/12000/14000/15000/16000	4500/6000/8000/10000/ 12000/14000/15000/16000	8000/10000/12000/ 13000/14000/15000/16000
Max.grinding height	mm	950
Max.distance from the wheel center to table surface	mm	1250
gantry effective width	mm	1600	2000	2500	3000	3500
H.wheel head motor power	KW	22		22	30	30
H.wheel head size	mm	600*120*203			600*120*305
H.wheel head speed	m/min	1050
vertical head motor power	KW	11			15	15
vertical wheel head size	mm	400*75*127
vertical head speed	rpm	800-2500
vertical wheel head rotation	°	±90°
Roughness	um	Ra0.63

3.Standard accessories
Leveling wedges and foundation screw,wheel balance stand,wheel flange,wheel balance arbor,wheel,wheel extractor,belt,Cooltant tank with magnetic separator.
4.Optional accessories you can choose
magnetic chuck,diamond pen,paper filter 5.Company honors

6.Top view of surface grinder workshop
7. Advantages
1.Factory direct sales, product quality and after-sale can be effectively guaranteed
2.Big listed company who has more than 50 years manufacture experience,more than 30years international trade experiences.
3.we have been cooperating with many companies abroad,such as KNUTH ,OPTIMUM in Germany,BERNARDO in Austria,MSC, GRIZZLY in USA and some other companies.The quality of our machines has gotten good reputation from them
8.After-sale services
I. During the warranty period of the machine tool due to design, manufacturing, quality of parts and other reasons caused by the fault, free treatment or replacement of new parts.
II. After the warranty period, lifelong paid maintenance and service will be provided.technical support forever.
III. Provide spare parts and spare parts at preferential prices for a long time.
IV.the warranty is one year after machine out of our company.
