Compressed Natural H2 Cylinder Tube Bundle Structure 6 Tubes Skid Cascade Container

Product Description

Product Description

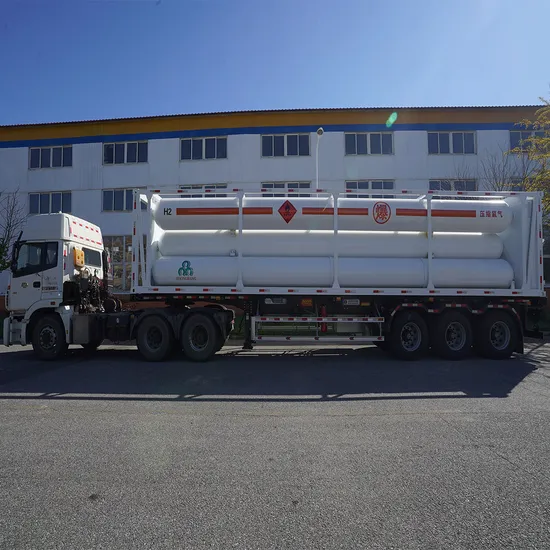

This product is a mobile pressure vessel which is connected by cylinder group and container frame, pipeline, safety accessories, loading and unloading accessories and other components. It is the special mobile pressure vessel that suitable for storing and transporting compressed gas such as air, hydrogen, natural gas and so on, suitable for road transportation, sea and land combined transportation. Advantage 1. Large filling capacity, light weight, cost-effective; 2. High safety: the bottle material is good plastic toughness, uniform force, reasonable stress distribution; 3. Good fatigue resistance: the use of finite element fatigue analysis and design, to ensure the good fatigue resistance of the equipment; 4. Both ends of the bottle body are provided with safety discharge device. In case of abnormal working conditions such as overpressure and fire, the safety discharge device will work automatically to ensure the safety of property and personnel. Product Parameters
1,Basic technical parameters table for hydraulic gas filling substation:

project	technical parameter	project	technical parameter
working pressure	≤ 20MPa	Exhaust volume	≥ 2000NM3/H (101.325kPa, 20 ºC)
High pressure gas outlet pipe	internal diameter ф 18mm	Gas extraction rate	95% (at a working pressure of 20MPa for gas injection)
Residual pressure after unloading the steel cylinder	1MPa	Adapt to ambient temperature	-40 ºC~+50 ºC
Main motor power	30KW	Total system power	≤ 80KW
Equipment weight	Approximately 6565Kg	Equipment noise	≤ 75dB, at a distance of 1 meter from the equipment
Finished gas contains oil	≤ 10ppm	Dust containing particle size	≤ 5 µ m
control mode	PLC programmable automatic control	Work cycle	continuity
Exhaust temperature	Normal temperature (ambient temperature)	Explosion proof level	Exdem [ia] ia BT4
Gas system pressure gauge	Select domestic products with an accuracy level of 1.5	Equipment size (mm)	4602 long × Width 2162 × High 2510

Time for converting quick fitting joints between two vehicles:	3-5 minutes (after the quick installation joint conversion is completed, the second vehicle starts working, and the first vehicle's return oil does not affect the second vehicle's refueling).
On site display instruments and control devices	Set up pressure gauges at the equipment operation site; The equipment operation area is equipped with emergency stop buttons and start buttons.
