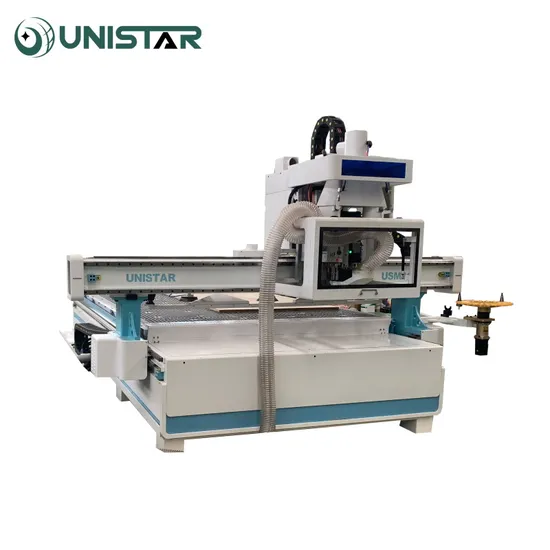

2024 CNC Router Machine with Disc Type Auto Tools Change for Furniture

Product Description

2024 CNC Router Machine with Disc Type Auto Tools Change for Furniture
Product Parameters

X,Y Structure	Rack and Pinion
Z Structure	TBI Ball Screw
Working Area	2000*4000*200mm
Spindle	air cooling
Control System	Syntac control system
Table Type	Vacuum Table
Motor and Driver	Japan yaskawa Motor and Driver
Inverter	Sunfar Inverter
Transmission	Taiwan Tbi Ball screw
Working voltage	AC380V/5Ph/50HZ
Number of Tools	12
Maximum Air Move Speed	40000 mm/Min
Effective Machining Speed	15000 mm/Min
Machining Precision	0.05 mm

Product Description

Spindle

9KW Air cooling spindle.
The spindle has the advantages of heat dissipation, energy-saving, environmental protection,not liable to failure and easy maintenance.

Syntac Control system

New human-machine interface, clear interface, fast operation, easy to learn and use, reducing the development time machine platform.

High quality rail guide

For x,y axis, import Taiwan High quality rail guide.The square rail can withstand high load pressure in four directions, high positioning accuracy, small friction coefficient, can maintain walking accuracy for a long time.

Yaskawa servo

High torque, to ensure the processing speed and stability of the equipment.
Z-axis adopts holding brake motor, which can protect the machine head from slipping after power failure.

SHIMPO-Nider Reducer

The unprecedented ultra-quiet gearbox with compact structure is suitable for the development trend of lightweight and compact servo motors.
The precise positioning characteristics of the gearbox fully demonstrates the performance of high-precision servo motors.

Optionally equipped with Boring Unit/drilling head.

HQD 5+4 row drilling head: automatic switching of drills during processing.
Make vertical holes with high efficiency and precision.

7.5KW vacuum pump 5.5KW double-bucket vacuum cleaner

The standard accessories of the equipment, which are important accessories that can improve the machining effect.

Positioning cylinders

Three for the Y-axis and two for the X-axis, forming a right angle, all five positioning cylinders are adjusted by a percentage table to ensure the secondary positioning accuracy during front and back machining.
The cylinder mounting base is milled flat to ensure mounting precision.

Loading and unloading tables

The equipment is equipped with automatic pushing function as standard, which can realize pushing the plate to the working table in the front section of the equipment after processing, and has the function of secondary dust removal.
Detailed Photos

Samples

Benefits

1) auto loading- suck the material sheet from the lift platform and drag it to the working table of the router machine.
2) auto location- the sheet is located automatically after it reaches the working table.
3) auto machining- with an auto tool changer, every production stage is machining automatically.
4) auto unloading- the machine pushes the finished boards to the conveyor belt platform for collection.
Application
Wood Door Making CNC Router Machine is specially used for panel furniture including office furniture, kitchen cabinets, clothes cabinet, and so on. Redwood classical and antique furniture, Exquisite European furniture, decorative products sculpture.
Packaging & Shipping

After-Sales Service

We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical questions in using it, we will freely do our best to support you.
