Cultivating Moto Power Tillage Paddy Field Machine Desiel Rotary Tiller Crawler Type
Basic Info.
Model NO.
1WLZ-200
Application Field
Agriculture
Farming Policy
Paddy Field Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Semi Hanging
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Certification
CE
Color
Red
Warranty
One Year
Engine Power
100HP
Tiller Width
2000mm-2300mm
Weight
2850kg
Working Efficiency
0.4 Hectare/Hour
Gauge
1200mm
Minimum Ground Clearance
420mm
Max.Working Speed
8.5km/Hour
Transport Package
Container
Specification
4000mmx 2500mm x 2860mm
Trademark
Wubota
Origin
Huzhou
HS Code
8432290000
Production Capacity
200/Month
Product Description

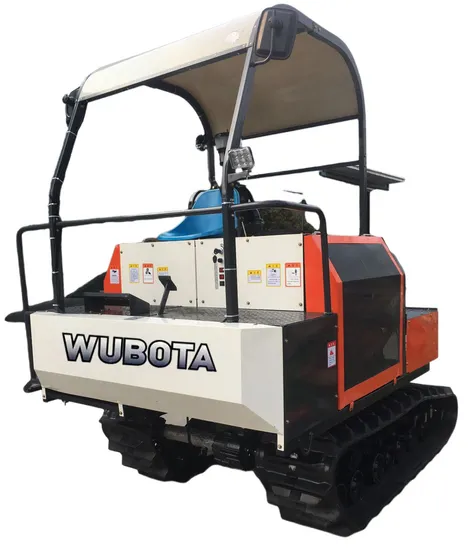

Professional Crawler Tractor for Paddy Land Cultivation| MODEL | / | 1GZL-200 | 1GZL-220 | ||
| MEASURE SIZE | mm | 4000 x 2300 x 2860 | 4000x 2500 x 2860 | ||
| WEIGH | kg | 2100 | 2125 | ||
| Working Effective | hm2/h | 0.2~ 0.32 | 0.24~ 0.4 | ||
| Gauge | mm | 1200 | |||
| Minimum Ground Clearance | mm | 340 | |||
| Working Speed | km/h | 0 ~ 5.8 | |||
| RUBBER CRAWLER | 450/90/51 | ||||
| Max.Working Speed | km/h | 8.3 | |||
| Productivity | r/min | 580 | |||
| Brake Specific Fuel Consumption | kg/ hm2 | ≤15 | |||
| Engine | Structure | / | In-line , water cooled, 4-stroke, direct injection turbo | ||
| Rated Power | HP | 100 | |||
| Rotating Speed | r/min | 2600 | |||
| Rotator Tilloer Part | Rotator width | mm | 2000 | 2200 | |
| Tilling Depth; | cm | Dry fields:≥12;Water fields:≥10 | |||
| Blade | QTY Blade | PCS | 60 | 68 | |
| Blade Type | / | IT245 | |||
| blade Speed | r/min | 280 ~ 330 | |||
FAQ 1. Q: What is the warranty of your agricultural machines?
A: 1 year guarantee for whole machine ( except quick-wear parts ), engine and gear box.
2. Q: Are there any optional parts for your combine harvesters ?
A: Yes, optional parts such as rubber track size, grain tank and type of grain unloading.
3. Q: How long is your delivery time ?
A: Normally it takes 15-20 days to deliver after your deposit receipt or L/C at sight.
4. Q: How many harvesters can be loaded in one container ?
A: 20 Feet Container load one unit. 40Feet container load 3 units
