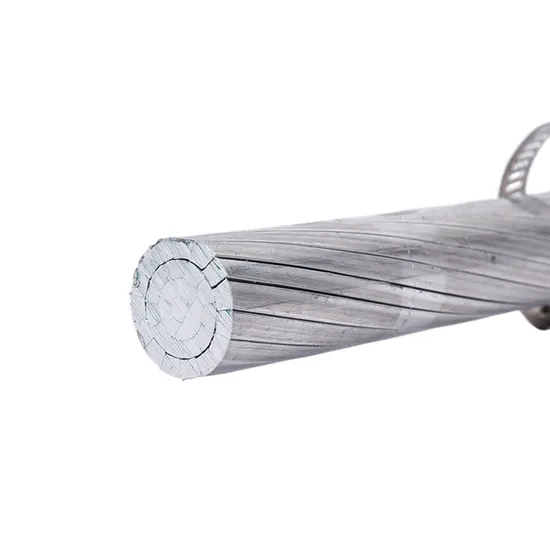

All Aluminum Conductor & Aluminum Conductor Steel Reinforced Bare Overhead Conductors

Product Description

Widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
Execute Standards
(1). ASTM B 232/B 232M:Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
(2). AS 3607:Conductors-Bare overhead, aluminium and aluminium alloy-Steel reinforced
(3). IEC 61089:Round wire concentric lay overhead electrical conductors
(4). DIN 48.204:Steel reinforced aluminium stranded conductor
(5). BS 215-2:Aluminium conductors and aluminium conductors, steel-reinforced-For overhead power transmission-Part 2:Aluminium conductors, steel-reinforced
(6). BS EN 50182:Conductors for overhead lines-Round wire concentric lay stranded conductors
(7). Production can be arranged according to customers requirements' for material standard, etc.

Code Name	Size	No./Dia.of Stranding Wires		Approx. Overall Dia.	Approx. Weight	Code Name	Size	No./Dia.of Stranding Wires		Approx. Overall Dia.	Approx. Weight
	AWG or MGM	Alum.	ST.				AWG or MGM	Alum.	ST.
		No./mm	No./mm	mm	kg/km			No./mm	No./mm	mm	kg/km
Swanate	4	7/1.96	1/2.61	6.53	93	Tern	795	45/3.38	7/2.25	27.03	1300
Sparrow	2	6/2.67	1/2.67	8.01	129	Condor	795	54/3.08	7/3.08	27.72	1461
Sparate	2	7/2.47	1/3.30	8.24	148	Cuckoo	795	24/4.62	7/3.08	27.74	1461
Robin	1	6/3.00	1/3.00	9.00	163	Drake	795	26/4.44	7/3.45	28.11	1550
Raven	1/0	6/3.37	1/3.37	10.11	206	Coot	795	36/3.77	1/3.77	26.41	1184
Quail	2/0	6/3.78	1/3.78	11.34	259	Mallard	795	30/4.14	19/2.48	28.96	1728
Pigeon	3/0	6/4.25	1/4.25	12.75	327	Ruddy	900	45/3.59	7/2.40	28.73	1472
Penguin	4/0	6/4.77	1/4.77	14.31	412	Canary	900	54/3.28	7/3.28	29.52	1554
Waxwing	266.8	18/3.09	1/3.09	15.45	422	Rail	954	45/3.70	7/2.47	29.61	1560
Merlin	336.4	18/3.47	1/3.47	17.35	532	Catbird	954	36/4.14	1/4.14	28.95	1421
Linnet	336.4	26/2.89	7/2.25	18.31	656	Cardinal	954	54/3.38	7/3.38	30.42	1753
Oriole	336.4	30/2.69	7/2.69	18.83	737	Ortlan	1033.5	45/3.85	7/2.57	30.81	1690
Chickadee	397.5	18/3.77	1/3.77	18.85	629	Tanager	1033.5	36/4.30	1/4.30	30.12	1539
Ibis	397.5	26/3.14	7/2.44	19.88	775	Curlew	1033.5	54/3.52	7/3.52	31.66	1900
Lark	397.5	30/2.92	7/2.92	20.44	871	Bluejay	1113	45/4.00	7/2.66	31.86	1821
Pelican	477	18/4.14	1/4.14	20.70	754	Bunting	1192.5	45/4.14	7/2.76	33.12	1949
Flicker	477	24/3.58	7/2.39	21.49	877	Grackle	1192.5	54/3.77	19/2.27	33.97	2190
Hawk	477	26/3.44	7/2.67	21.80	931	Bittern	1272	45/4.27	7/2.85	34.17	2080
Hen	477	30/3.20	7/3.20	22.40	1044	Pheasant	1272	54/3.90	19/2.34	35.10	2335
Osprey	556.5	18/4.47	1/4.47	22.35	880	Skylark	1272	36/4.78	1/4.78	33.42	1895
Parakeet	556.5	24/3.87	7/2.58	23.22	1023	Dipper	1351.5	45/4.40	7/2.92	35.16	2210
Dove	556.5	26/3.72	7/2.89	23.55	1085	Martin	1351.5	54/4.02	19/2.41	36.17	2481
Eagle	556.5	30/3.46	7/3.46	24.21	1219	Bobolink	1431	45/4.53	7/3.02	36.24	2342
Peacock	605	24/4.03	7/2.69	24.20	1112	Plover	1431	54/4.14	19/2.48	37.24	2628
Squab	605	26/3.87	7/3.01	24.51	1180	Nuthatch	1510.5	45/4.65	7/3.10	37.20	2470
WoodDuck	605	30/3.61	7/3.61	25.25	1325	Parrot	1510.5	54/4.25	19/2.55	38.25	2773
Kingbird	636	18/4.78	1/4.78	23.88	1007	Lapwing	1590	45/4.77	7/3.18	38.16	2599

Aluminum Sectional Area		Stranding No. and Dia.		Approx. Overall Dia	Approx. Weight	Calculated Breaking Load	Calculated D C Resistance at 20oC	Code Name
AWG	(mm2)	Al.	St.	(mm)	(kg/km)	(KN)	(Ω/km)
6	13.30	6/1.68	1/1.68	5.04	53.75	5,303	2.157	Turkey
4	21.18	6/2.12	1/2.12	6.36	85.57	8,302	1.335	Swan
4	21.12	7/1.96	1/2.61	6.53	99.56	10,642	1.352	Swanate
2	33.59	6/2.67	1/2.67	8.01	135.70	12,653	0.854	Sparrow
2	33.54	7/2.47	1/3.30	8.24	158.60	16,171	0.852	Sparate
1	42.41	6/3.00	1/3.00	9.00	171.40	15,852	0.676	Robbin
1/0	53.52	6/3.37	1/3.37	10.10	216.20	19,455	0.536	Raven
2/0	67.32	6/3.78	1/3.78	11.30	272.00	23,529	0.426	Quail
3/0	85.14	6/4.25	1/4.25	12.80	344.00	29,417	0.337	Pigeon
4/0	107.20	6/4.77	1/4.77	14.30	433.40	37,055	0.268	Penguin
266800	135.00	18/3.09	1/3.09	15.50	430.50	30,519	0.213	Wax wing
266800	134.90	26/2.57	7/2.00	16.30	545.40	26,403	0.214	Partridge
300000	152.20	26/2.73	7/2.12	17.30	614.60	56,410	0.190	Ostrich
336400	170.20	18/3.47	1/3.47	17.40	542.90	38,487	0.169	Merlin
336400	170.60	26/2.89	7/2.25	18.30	689.90	62,918	0.169	Linnet
336400	170.50	30/2.69	7/2.69	18.80	784.50	77,267	0.170	Oriole
397500	201.60	24/3.27	7/2.18	19.60	762.50	65,099	0.143	Brant
397500	201.30	26/3.14	7/2.44	19.90	813.50	72,426	0.143	Ibis
397500	200.90	30/2.92	7/2.92	20.40	924.40	90,485	0.144	Lark
477000	242.3	18/4.14	1/4.14	20.70	772.60	52,302	0.119	Pelican
477000	241.7	24/3.58	7/2.39	21.50	914.90	73,243	0.120	Flicker
477000	241.6	26/3.44	7/2.67	21.80	975.50	86,011	0.120	Hawk
477000	241.3	30/3.20	7/3.20	22.40	1,110.00	105,611	0.120	Hen
556500	282.4	18/4.47	1/4.47	22.40	900.70	60,972	0.120	Osprey
556500	282.2	24/3.87	7/2.58	23.2	1,068.00	84,424	0.1030	Parakeet
556500	282.6	26/3.72	7/2.89	23.6	1,142.00	100,838	0.1030	Dove
556500	282.1	30/3.46	7/3.46	24.2	1,298.00	123,470	0.1030	Eagle
605000	306.2	24/4.03	7/2.69	24.2	1,159.00	95,861	0.0948	Peacock
605000	307.2	26/3.87	7/3.01	24.5	1,236.00	108,317	0.0944	Squab
605000	307.2	30/3.61	7/3.61	25.3	1,414.00	128,736	0.0945	Duck
605000	307.2	30/3.61	19/2.16	25.2	1,398.00	133,082	0.0945	Teal
636000	323.1	18/4.78	1/4.78	23.9	1,031.00	69,722	0.0890	Kingbirad
636000	323.0	24/4.14	7/2.76	24.8	1,222.00	101,038	0.0894	Rook
636000	322.5	30/3.70	19/2.22	25.9	1,472.00	14,029	0.0897	Egret
666600	337.2	24/4.23	7/2.82	25.4	1,276.00	105,478	0.0856	Flamingo
666600	338.3	26/4.07	7/3.16	25.8	1,366.00	117,258	0.0854	Gannet
