0.3 Cbm Wheel Changlin Nude Packed Excavator PC400 Wheeled Digger

Product Description

Product Description

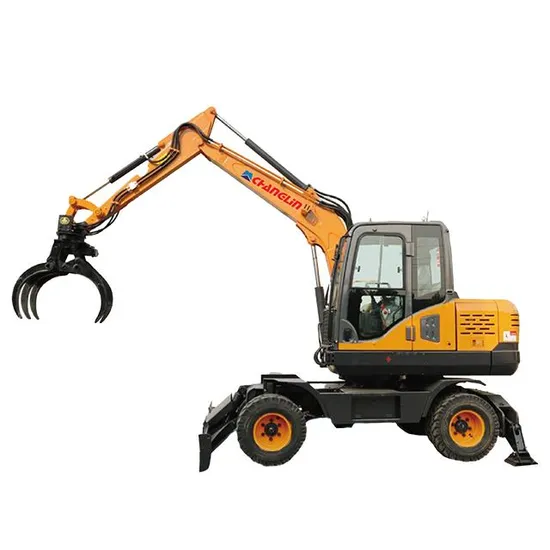

GHT80W excavator is a new generation of fully hydraulic wheeled excavator independently developed by Changlin. It adopts a high-power and low-fuel-consumption engine to ensure the strong power and power reserve of the whole machine; the precise matching of the high-efficiency hydraulic system and the axle box ensures the work.
The hydraulic system of the whole machine is matched with famous hydraulic components, and has the characteristics of "high reliability, genuine goods, safety and environmental protection, comfort and convenience", etc. At the same time, it can provide a variety of special configuration and attachments options, which can be adapted to different countries and customer's demand.
Equipped with hydraulic travel system as standard, no need to step on the clutch and shift the gear during the operation, and easy to realize the stepless speed change. High driving force enables the vehicle to have a flexible ability to get out of trouble and ensure strong off-road performance.
Various attachments available. Spacious and comfortable cab, providing excellent all-round vision. New ergonomic seat to improve operator comfort.
Product Parameters

	ITEM		GHT80W
Dimensions	Operating weight	Kg	6950
	Rated bucket capacity	m3	0.3
	Overall length	mm	6200
	Overall width	mm	2150
	Overall height	mm	2920
	Tail length	mm	1855
	Turning radius of turnable	mm	1855
	Wheel base	mm	2350
	Wheel tread	mm	1665
	Dozer dimension	mm	2150*500
	Dozer lifting height	mm	380
	Dozer supporting height	mm	600
Performance	Max. travelling speed	Km/hr	30
	Swing speed	rpm	12~13
	Gradeability	Degree(%)	60
Working Range	Maximum digging radius	mm	6385
	Maximum digging depth	mm	3435
	Maximum digging height	mm	6910
	Maximum dumping height	mm	5160
	Bucket digging force	kN	45
	Stick digging force	kN	22
Engine	Model		A498BZG
	Type		4-cylinder in-line, four-stroke turbocharger
	Emission		TIER II
	Displacement	L	3.17
	Rated power	kw	55
	Max. torque	N.m	250N.m@1600rpm

Company Profile
Our Advantages
After Sales Service
Packaging & Shipping

FAQ
Q1:Are you original manufacturer?
A: Yes, we CHANGLIN are an official leading manufacturer in construction machinery. We set up juint venturers with KOMATSU and HYUNDAI in 1990s.
Q2: What kind terms of payment can be accepted?
A: L/C, T/T, D/A, D/P, Western Union (can be) could be accepetd.
Q3: Which incoterms can we work?
A: FOB, CFR, CIF are the usual trade terms.
Q4: What about the delivery time?
A: 7-30 days after receiving the deposit.
Q5: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
Q6: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, EAC, EPA(USA)CCC.
Q7: Do you accept OEM or ODM?
A: We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Q8: Can you provide online technical services?
A:Yes, the digital service team is able to provide online technical services via shooting video, remote real-time video link,
