Novasky Three Dimensional Through Wall Radar Cem440 for Anti-Terrorism & Hostage Rescue

Product Description

Company Profile
Novasky Technology Co.,Ltd. was established in 2006. The company focuses on electromagnetic detection, sensing and control technology, and provides product and system integration services for anti-terrorism, search & rescue, high-end security and automotive safety. At present, the company has subsidiaries in Malaysia, Beijing and Shanghai, and R & D centers in Changsha, Chengdu and Xi'an. Novasky is rewarded as national high-tech and "double-soft" certification enterprise.
Novasky Technology Co.,Ltd. has advanced scientific and technological talents and technologies in the fields of radar, optoelectronics, software and system engineering. With years of technology accumulation, the company has mastered key technology including weak life signal detection and tracking algorithms, ground complex environment target detection and tracking algorithms, low-slow and small UAV detection and tracking algorithms, multi-source perception fusion, electronic reconnaissance and countermeasures, etc. Focusing on the vision of "Building a Safe World", NOVASKY has developed core products and solutions for emergency rescue, counter-terrorism, judicial security and other fields. Product Description

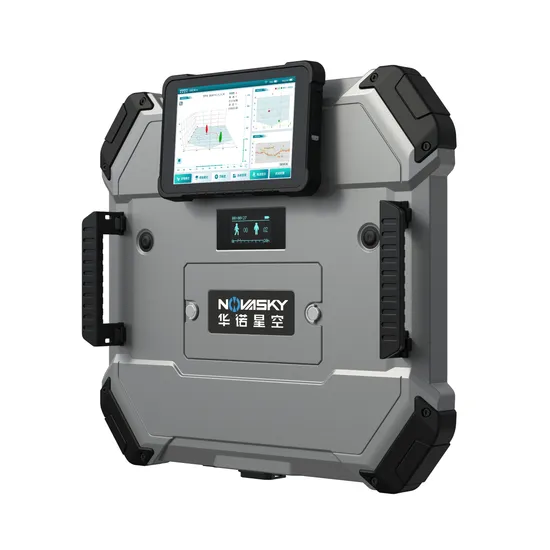

Portable Three Dimentional Imaging Through Wall Radar CEM440CEM440 three-dimensional imaging through the wall radar is Novasky for "anti-terrorism, hostage rescue, anti-narcotics operations, intelligence collection, urban street battles, disaster search and rescue" and other areas of reconnaissance/search and rescue needs, the launch of a fusion of "FMCW (Frequency-Modulated Continuous Wave) system,MIMO(Multi-transmitter-Multi-receiver) architecture, AI (artificial intelligence)" technology and other technologies. FMCW (Frequency Modulated Continuous Wave) system,MIMO(Multi-transmitter,Multi-receiver) architecture, AI (Artificial Intelligence)" and other technologies, an ultra-wideband wall-penetrating surveillance radar device. The device can penetrate common building structure walls/floor slabs and other obstacles to carry out three-dimensional imaging and localization of personnel targets/building structures behind them, and obtain two-dimensional and three-dimensional spatial coordinates, three-dimensional imaging, attitude, static and dynamic status, number of personnel targets in the detection area as well as the layout of the building structure and other environmental sensing information.
The device is small in size and light in weight, suitable for carrying and maneuvering by a single soldier, and is a through-wall reconnaissance radar device with strong detection performance, rich functions, easy to carry, and friendly human-machine interaction.
Product Features:
Strong portability: small size, light weight, handle can be folded, easy to use and fast, suitable for single soldier to carry and maneuver.
Strong penetrability: it can penetrate non-metallic obstacles such as walls and floor slabs of common building masonry structures to complete the detection task.
Intuitive display: with three-dimensional, two-dimensional, one-dimensional three display views, display three-dimensional, intuitive and clear.
Three-dimensional imaging and localization: with three-dimensional generalized imaging and three-dimensional spatial localization capabilities, closer to the needs of actual combat.
Attitude recognition: real-time access to the target's dynamic, static state and standing, squatting and other attitude information.
Strong multi-target detection ability: it has the ability to simultaneously locate multiple dynamic and static human targets, with real-time and stable tracking.
Strong practicality of obstacle avoidance tips: it can quickly avoid areas that are difficult to penetrate, and even assist in selecting blasting points.
Strong practicality of the floor mode: can penetrate the floor for three-dimensional spatial positioning of the target on the floor below or above, close to the actual combat scenarios.
Structural layout simulation and reconstruction: with indoor walls, columns and other structural layout reconstruction functions, greatly enhancing the ability to perceive the environment.
Friendly human-computer interaction: the system is simple and intelligent to control; it adopts Type-C port charging, plugging without direction, and has stronger versatility.
Data traceability: real-time recording of the detection process, can be traced back to the history of detection.
Long endurance: long comprehensive endurance, and support 24 hours uninterrupted continuous power supply.
Strong environmental adaptability: all-day, all-weather work, adapt to rain, haze, snow, ice, dust and other harsh weather conditions. Product Parameters

Device Type	3D through wall radar
Penetrable Materials	Non-metallic, low-moisture-content objects such as building walls, floor slabs, cement, gypsum, concrete, glass, wood, etc.
Display Information	3D imaging, 3D localization, attitude, 2D localization, 1D echo, number of targets, dynamic and static target differentiation, trajectory, indoor structure layout, etc.
Thickness through the wall	≥ 37cm (brick wall)
Detection Range	60m
FOV	120° in Azimuth, 90° in Elevation
Multi-target Detection	≥5
Protection Grade	IP67
Optional Accessories	Wireless remote display terminal, batteries
Endurance	≥9h (2 batteries)
Mainframe size	≤500mm×450mm×50mm
Mainframe weight	≤5.2kg (including battery)
Operating temperature	-20ºC~50ºC
