Portable 300W-5000W 12V/24V/48V Pure Sine Wave Hybrid Solar Power Inverter/Soalr Home or Car Power Inverters/off-Girld System/Solar Charge DC or AC/UPS Inverter

Product Description

ESAVIOR GREEN ENERGY, an innovative manufacturer of Solar Street Lights, Solar Power System and Pure Sine Wave Inverter, Hybrid Solar Inverter, etc.

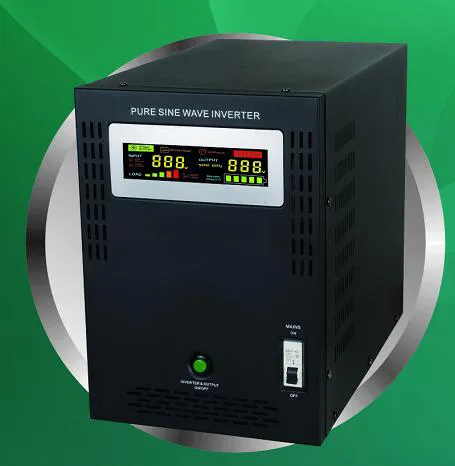

New Portable 300W-5000W Pure Sine Wave Hybrid Solar Power Inverter System
Hybrid Solar Inverter Key Features:
★ MPPT Solar Charger Controller with efficiency >99%
★ Power 300% surge power
★ High Charge Current, 3 stage battery charger
★ Pure Sine Wave with low harmonic distortion
★ CRGO toroidal transformer, lower static loss, higher efficiciency
★ 32 bit high speed CPU control with accurate detection
★ Auto switch between AC and PV.
★ Integrated design with biult-in batteries, portable and easy to install.
SOLAR INVERTER SYSTEM CONFIGURATIONS:

Model No.	HSI-1500	HSI-3000	HSI-7000
Rated Power	1500VA/1050W	4kVA/3kW	7kVA/5kW
Battery Vol.	24Vdc	48Vdc	48Vdc
Working Mode	PV/ AC Priority Optional by Manual
Max Charge Current	40A	60A	80A
Controller Type	MPPT- Max Power Point Tracking
Controller Efficiency	98%

Applications
1. Living house and home building.
2. Office building, factory and warehouse.
3. Shopping mall, stadium and so on.
4. Power station, field operation and some huge engineer construction.
5. Suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip.
Solar Inverter FAQ:
1. How to choose suitable inverter?

If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.
2. How do I choose the size of the inverter?

Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.
3. How connection between batteries and an power inverter?

We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions
4. How to calculate the load of working hours requires configuration of the battery size?

We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:
Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)
Why Esavior
13 patents were awarded to our Solar Street Lights and IoT online Monitoring System for Solar Street Light. ISO 9001/14001 certificates were awarded by TUV-SUD. IEC 60598/ IES TM-21 / IES RP-27.3-07 reports were awarded by TUV-SUD besides our existing CE/RoHs/IP66 certificates. ESAVIOR finished projects were highly praised by UNDP, UNHCR, UNOPS, Red Cross, The World Bank and government in over 100 countries. Our 3000 sqm new factory with global solar RD & Inspection Center would start operation from December 27, 2018,has the most advanced inspection equipment and faultless QA system. Esavior provides different solar solutions, which is based on customer needs, richer product line.
Thanks for your attention to Esavior, which supply solar led street light, solar garden light, flood light, and off-grid solar system, solar inverter, etc.
For all rang products please visit our website: esavior.en.made-in-china.com to download brochure & specification & user manual.
