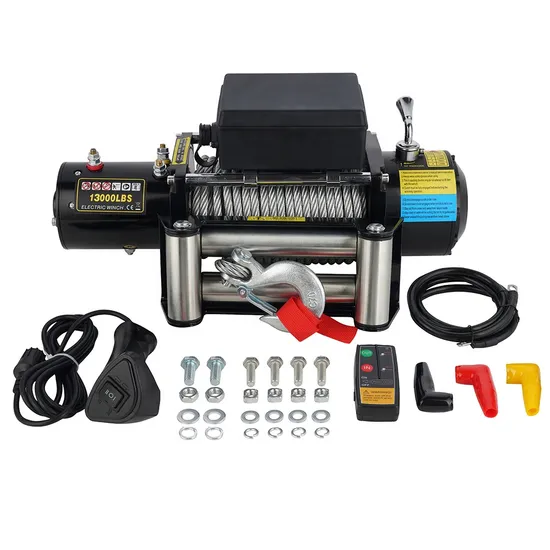

12 V 13000lbs Electric Winches for 4X4
Basic Info.
Model NO.
AT-13000
Power Type
Series Motor DC
Electric Winch Model
4X4
Working Voltage of Electric Winch
Low Voltage
Brand
Antai
Applicable Environment
Mountain Road
Certification
TUV, GS, CE
Transport Package
Carton and Pallet
Specification
1PC/CTN
Origin
Ningbo, China
HS Code
84253190
Production Capacity
10000 PCS/Month
Product Description
Pure copper motor and power cable, waterproof control box, steel gears 12V DC 13000lbs rated line pull 6.8HP pure copper motor Waterproof control box 3m handheld wired remote Pull-and turn clutch handle 3-stage planetary gearing with 265:1 ratio 9.1mmx26 steel wire rope Heavy duty steel winch hook Stainless steel 4-way roller fairlead 100% full load holding automatic mechanical brake 13000LB WINCH SPECIFICATIONS
| Rated Line Pull | 13000LBS (5897kgs) single line |
| Motor | 5.0kw/6.8hp, series wound |
| Control | Remote switch, 9.8ft(3m)lead |
| Gear train | 3 Stage Planetary |
| Gear train ratio | 265:1 |
| Clutch | Sliding Ring Gear |
| Braking Action | Automatic In-The-Drum |
| Drum Size | Φ2.5"(64)mm×(8.8")223.5mm |
| Cable | Φ9.5mmX26m |
| Overall Dimensions | 19.8"x6.3"x8.5"(527mm×160mm×217mm) |
| Mounting Bolt Pattern | 255mm×114mm Φ11 |
| Weight | N.W.38kg G.W.39Kg |
| Packing Size | 610×350×270mm |
| Line pull lbs(kgs) | Line speed ft/min(m/min) | Current A |
| 0 | 24.9(7.6) | 80 |
| 1500(680) | 17.2(5.2) | 170 |
| 3000(1814) | 11.8(3.6) | 230 |
| 5500(2495) | 9.2(2.8) | 275 |
| 8000(3629) | 7.2(2.2) | 330 |
| 10500(4763) | 5.7(1.7) | 385 |
| 13000(5897) | 5.2(1.6) | 405 |
| Layer | Rated Line Pull lbs(kgs) | Total Rope on Drum ft(m) |
| 1 | 13000(5897) | 13(5) |
| 2 | 10300(4672) | 23(11) |
| 3 | 8840(4009) | 69(21) |
| 4 | 7410(3361) | 92(28) |
