PVC Injection Collapsible Core Plastic Pipe Fitting Mould (JZ-P-C-03-021-A)

Product Description

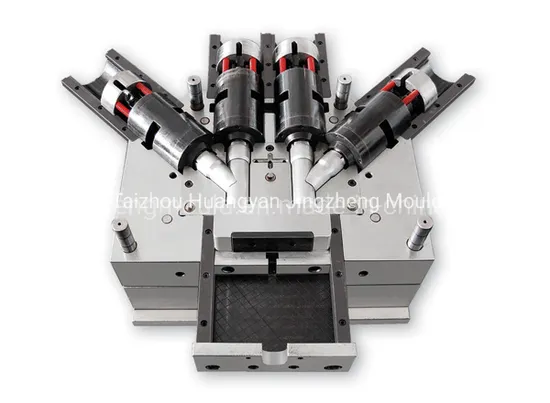

PVC Injection Collapsible Core Plastic Pipe Fitting Mould (JZ-P-C-03-021-A)
Product Description
A UPVC Drainage Pipe Fittings Mould is a specialized mold used in the manufacturing of drainage pipe fittings made from unplasticized polyvinyl chloride (UPVC) material. UPVC is a durable and corrosion-resistant material commonly used in plumbing applications for its strength, longevity, and ability to withstand harsh environments.
The UPVC drainage pipe fittings mold is designed to create a wide range of fittings used in drainage systems, such as elbows, tees, couplings, reducers, and end caps. These fittings are essential components in drainage systems, as they allow for the proper connection and redirection of wastewater and sewage within a building or infrastructure.
The mold is made of high-quality materials to withstand the high temperatures and pressures involved in the injection molding process. The design of the mold includes cavities and cores that define the shape, size, and features of the drainage pipe fittings to be produced.

Being recognized as the most trustable plastic mold manufacturer and a provider of valuable customer services, we are proud of our growth over the years. We have invested our time and money into our business and our devotion and loyalty to our customers to bring about the best results. We have a trained set of workers who have sharp skills to help us with mold-related queries and provide us with their best efforts to bring innovation.
Product Parameters

Product Name	UPVC Drainage Pipe Fittings Mould
Mould Running	Fully Automatic
Fitting Size	32mm/40mm/ 50mm/75mm/90mm/110mm/160mm......
	Fititng Ranges From 32Mm To 315Mm
Moulding Material	UPVC
Standard	EN1401,EN1329,GB/T 5836,ISO 3633,ISP 1452,SANS 791
Cavity Number	1/2/4/8...... Customized Requiredments Is Welcomed
Steel Of Core And Caity	Germany Steel 1.2316 /China1.2316/4Cr13/3Cr13 /P20 Chromed
Steel Of Mould Base	S50C/S45C/LKM
Mould Accessories	DME/HASCO Standard
Surface Finish	Diamond Polish
Mould Ejector Way	Ejector Pin/ Ejector Plate / Air Valves / Slide
Surface Treatment	Polish / Etched
Mould Heat Treatment	Tempering / Quenching/ Nitriding
Core Pulling System	Hydraulic Motor
Mould Life	1000000 Shots
After Service	12 Month

Detailed Photos
High Precision
The accessories produced by the mold have high precision, ensuring good sealing and reliable connection, reducing the risk of water leakage.
Design Flexibility
The mold can be customized as needed to produce accessories of various shapes and sizes to meet the needs of different users.
Energy Saving and Environmental Protection
The mold design focuses on energy saving, reducing energy waste in the production process, and has a positive impact on the sustainable development of the enterprise.
Visual Inspection System
The mold has a built-in visual inspection system, which is convenient for operators to monitor the production status at any time and detect problems early, thereby reducing the scrap rate.
Modular Design
The modular structure is adopted to facilitate replacement and maintenance, reduce downtime, and improve production flexibility.
