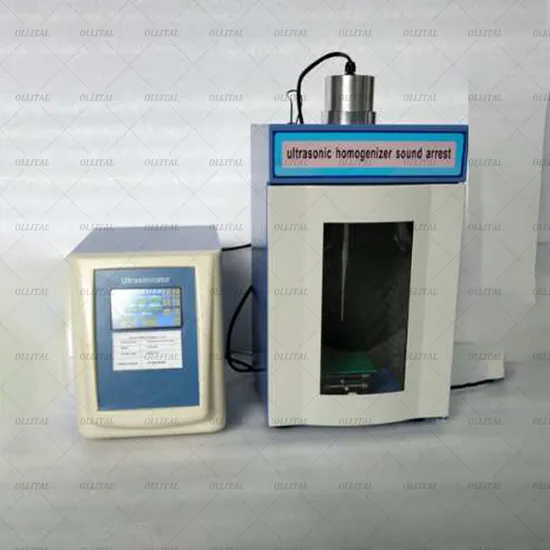

Ollital Touch Screen Ultrasonic Cell Crusher for Sell

Product Description

Product Description
Ultrasonic cell crusher is a multi-functional and multi-purpose instrument that uses ultrasonic waves to produce cavitation effect in liquids. It can be used to break a variety of animals, plants, viruses, cells, bacteria and tissues. It can also be used for emulsification, separation, homogenization, extraction, defoaming, clarification, preparation of nanomaterials, dispersion and acceleration of chemical reactions, etc. Instruments are widely used in biology, microbiology, physics, zoology, agronomy, pharmaceuticals, chemical industry, sewage treatment, nanomaterials and other fields.
- Ultrasonic generation: There is an ultrasonic generator inside the device, which generates high-frequency (usually above 20 kHz) ultrasonic vibrations.
- Ultrasonic wave transmission: Ultrasound waves are transmitted into the sample through an oscillator (also called a transducer or probe) in the device. An oscillator is usually a metal or ceramic probe placed in the sample that converts electrical energy into ultrasonic vibrations.
- Effect of ultrasonic waves: The propagation of ultrasonic waves will cause local high-pressure and low-pressure areas in the sample, causing compression and dilution of sound waves. This alternating high and low pressure causes bubbles in the liquid to form and collapse, creating a phenomenon called sonic cavitation. This cavitation creates regions of high temperature and pressure in the liquid, causing localized physical and chemical changes.
- Sample fragmentation: The effect of acoustic cavitation will form local high pressure and high temperature in the sample, causing the cell wall or cell membrane to rupture, allowing the internal structure and components of the cell to be released. In this way, cells or tissues are broken into smaller particles or fragments.
- Sample dispersion: The vibration of ultrasonic waves also causes particles or fragments in the sample to be effectively dispersed in the solution, preventing sample agglomeration or precipitation.
Product Details
Product ParametersMain features:
- Large screen LCD display.
- Microcomputer control, can store 50 sets of working data.
- Ultrasonic time and ultrasonic power can be set.
- Automatic detection of ultrasonic power to prevent ultrasonic power from changing with changes in sample temperature.
- Integrated temperature control prevents sample overheating.
- Automatic tracking of frequency and automatic fault alarm.

Model	Working frequency(KHz)	Ultrasonic power ratio	crushing capacity(ml)	Optional pole configurations	Sample temperature protection
QQ-150Y	22±1	1%-99%(5-150W)	0.2-150	Φ2,Φ3	Room temperature -99ºC
QQ-250Y	22±1	1%-99%(10-250W)	0.2-250	Φ2,Φ3
QQ-650Y	22±1	1%-99%(10-650W)	0.2-500	Φ2,Φ3,Φ10,Φ12
QQ-1000Y	22±1	1%-99%(10-1000W)	0.2-650	Φ2,Φ3, Φ12,Φ15

* The above parameters are for reference only. Please Contact an engineer for actual configuration.
* All models can be customized according to drawings and needs. Contact an engineer today to learn about the most suitable and cost-effective solution!
Products real shotLCD
Touch operation panel, the operation interface data display is clear at a glanceUltrasonic probe rod
Made of titanium alloy, speakers of different specifications can be replaced to meet different needsSound-absorbing and sound-insulating cotton
Effectively reduce ultrasonic noiseKnob control lift table
The bottom has a ring texture to effectively prevent the container from shifting during ultrasound.Multiple heat dissipation vents
The body is designed with multiple heat dissipation holes to ensure normal use of the machine.PVC + magnetic strip seal
It adopts magnetic strip sealing ring, which has good sealing performance, greatly reduces noise, and is easy to open and close.Ultrasonic transducer
Magnesium aluminum transducer components, various styles
