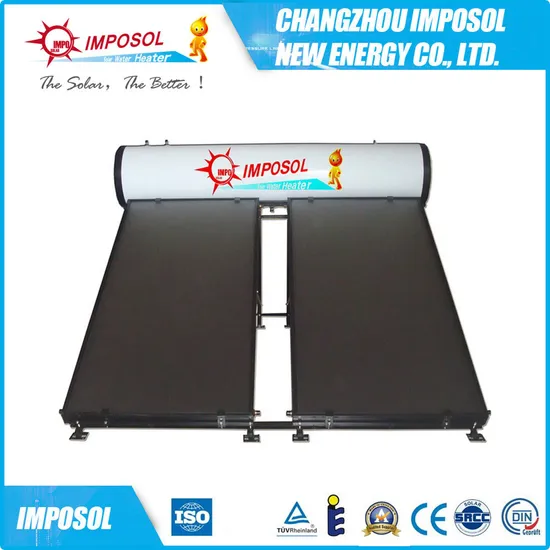

Galvanized Steel Compact Flat Plate Solar Collector - ISO. CE. SGS
| US$180.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
IPBB
Working Temperature Range
Medium Temperature
Type
Pressurized
Application
Water Heater, Solar Thermal
Pipe Material
Copper
Use
Home
Flat Plate Size
2-3sq.M
Outer Tank Material
Galvanized Steel
Inner Tank Material
SUS304
Brand
Imposol
Transport Package
Standard Carton
Specification
CE ISO
Trademark
imposol
Origin
China, Changzhou
HS Code
8419901000
Production Capacity
2400-3000 Sets/Month
Packaging & Delivery
Package Size
175.00cm * 56.00cm * 56.00cm
Package Gross Weight
150.000kg
Product Description
| Model | Flat Plate Solar Collector | Capacity (Liters) | Loading Quantity (20GP/40HQ) | ||
| Gross Area(m2) | Unit Area (m2) | NO . | |||
| IPFT 100II GS | 2 m2 | 2 m2 | 1 | 100 | 49/118 |
| IPFT 150II GS | 2 m2 | 2 m2 | 1 | 150 | 42/102 |
| IPFT 200II GS | 3 m2 | 3 m2 | 1 | 200 | 31/75 |
| IPFT 300II GS | 4 m2 | 2 m2 | 2 | 300 | 23/55 |
Flat Plate Solar Collector Part :
Dimensions : 2000*1060 ( 1560 )*80 mm , Gross area 2 ( 3 ) m2, Absorber area 1.8 ( 2.7 ) m2 .
Core material : 22mm header copper pipe with 10mm branch copper pipe - 0.6mm thickness , aluminum heat absorption plate wth black chrome coating .
Cover glass material : Low iron tempered glass 3.2mm . Transmittance 91%, EPDM+metal sealed
Frame material : Aluminum alloy 1.0mm
Insulation material : Glass wool ad PE foam ,35mm thickness
Back sheet material : galvanized plate 0.3mm
Working ( Testing ) pressure : 600kpa ( 800kpa )
Solar Water Tank And Frame Support Part :
Outer Tank : Painted galvanized steel - 0.4mm thickness , free-welding technology .
Inner Tank : SUS304-2B food-grade stainless steel - 1.2mm thickness , laser welding technology .
Insulation Layer : High density polyurethane - 50mm thickness , 72 hours efficient thermal insulation .
Frame support : Painted galvanized steel - 1.5mm thickness , anti-corrosive and anti-ultraviolet .
M8 Stainless steel SUS 304 bolts and nuts .
Silicone seal ring and dust ring
Stainless steel SUS304 - 2.0mm thickness 3/4' or 1/2' inlet, outlet, air vent
Pressure&temperature valve
Magnesium anode rod
Pressure relief valve with check valve
Thermal circulation connection pipe with insulation
Optional Accessories :
Electrical heater
Solar Controller
Freeze Protection Valve
Vacuum breaker valve
