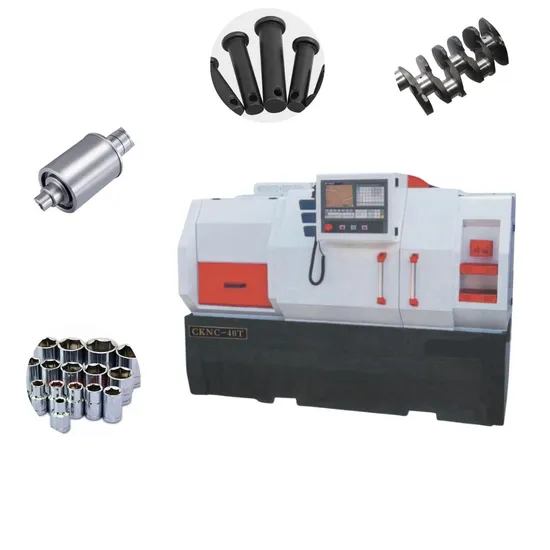

Double Triangular Guide Rail Fully Variable Speed Cknc-40t/750 CNC Lathe Fabricado En China

Product Description

Product Description

Product Feature:
1.The lathe uses a 11kw servo motor for linear driving, which can achieve fully variable speed change and is suitable for processing large pieces of aluminum, copper and other non-ferrous metals.
2.Using an independent spindle unit, the diameter of the spindle through hole is 82mm, ensuring that the spindle has good movement accuracy, rigidity and stability.
3.The enlarged carriage and integral pressure plate make the carriage more rigid and the cutting more stable and powerful. The carriage has undergone secondary aging treatment and has small thermal deformation.
4.Fanus, Syntec, Beijing KND,Wuhan HNC,GSK controller as optional.
5.The overall structure of the lathe foot is designed and manufactured in an integrated manner, using resin sand casting. After aging treatment, the deformation is small and it has great stability and rigidity.
6.Using double triangular guide rails, the stability and rigidity are better. After ultrasonic quenching, precision grinding is performed, and the accuracy and accuracy retention are better. Detailed Photos

Machine Type	CKNC-40T/750
Max swing over bed	Φ420mm
Max swing over cross slide	Φ230mm
X axis max travel	295mm
Z axis max travel	780mm
Width of bed	340mm
Maximum center distance	750mm
Spindle of nose	A2-6
Spindle bore taper	MT6#
Spindle bore diameter	Φ70mm
Spindle speed	2800rpm(Made in China)
Spindle power	5.5KW servo main motor
Chuck size	Manual three-jaw chuck Φ200mm
X/Z axis Lead screw model	2505/3210
X/Z axis Motor torque	4NM/6NM
X/Z axis Rapid feed rate	6m/min;8m/min
Positioning accuracy	X ±0.01mm;Z ±0.015mm
Repeat positioning accuracy	X ±0.0075mm;Z ±0.01mm
Roundness	≤0.007mm
Diameter consistency	≤0.03mm
Flatness	≤0.02mm
Surface roughness	≤Ra 1.6um
Tool holder form	4/6 stations
Tool holder specifications	25mm x 25mm
Tailstock sleeve diameter	Φ65mm
Tailstock sleeve travel	150mm
Tailstock top taper hole	MT4#
Power Specifications	Three phase 380V/50Hz
Overall dimension	2200x1400x1700mm
Net weight	1800KG
