Ict Fully Automatic Online Squeegees SMT Stencil Screen Printing Machine PCB SMD Placement Solder Paste Printer

Product Description

ICT Fully automatic Online Squeegees SMT Stencil Screen Printing Machine PCB SMD Placement Solder Paste Printing machine
Product Description

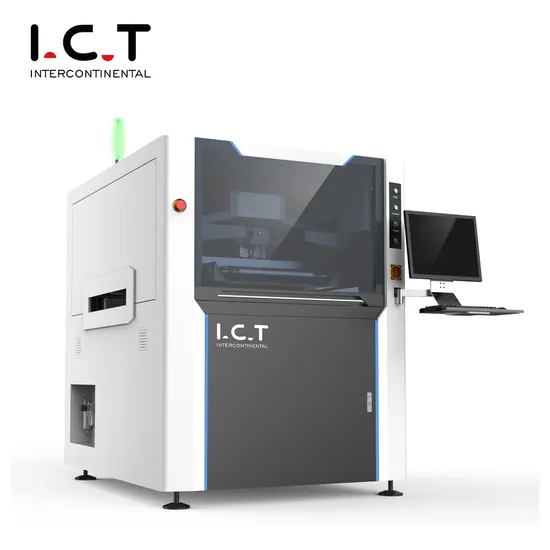

I.C.T Full-auto SMT Stencil Printer is a high precision automatic solder paste printer, correspond to industrial 4.0 and MES system.through a higher level of automation,achieve zero defect.
TOP Advantage:
1.Simple: combined with advanced international concepts, based on the Oriental-designed operating system, easy to learn.
2.Expertise: learn imported reflow oven's advanced design concepts, and the machine core components are using imported top brands.
3.Hedging: Import hardware configuration,low failure rate in production,more than a decade service life.
Full-auto SMT Stencil Printer:

Model	I.C.T-4034	I.C.T-5151	I.C.T-6561	I.C.T-1500(LED)
Frame Size(mm)	470*370 ~ 737*737	470*370 ~ 737*737	650*400 ~ 850*850	737*370 ~ 1800*750
PCB Size(mm)	50*50 ~ 400*340	50*50 ~ 510*510	80*50 ~ 650*610	80*50 ~ 1500*350
TransportDirection	Left-Right; Right-Left; Left-Left; Right-Right
Support System	Magnetic Pin/Up-down table adjusted/support block
Clamping System	Side clamping, vacuum nozzle,Automation retractable Z pressure
Printer Head	Two independent motorised printhead
Squeegee Type	Stainless steel(standard),plastic
Cleaning System	Dry, Wet, Vacuum
Inspection	2D Inspection(Standard)
Power Supply	AC:220±10%,50/60HZ,3Kw
Control Method	PC Control
Dimension(mm)	1220*1355*1500	1220*1530*1500	1330*1530*1500	2500*1220*1500

Model	I.C.T-5134	I.C.T-6534	I.C.T-1200
Frame Size(mm)	470*370 ~ 737*737	470*370 ~ 850*750	737*370 ~ 1500*750
PCB Size(mm)	50*50 ~ 510*340	50*50 ~ 650*340	80*50 ~ 1200*350
Dimension(mm)	1220*1355*1500	1330*1530*1500	2200*1200*1500

Semi-auto SMT Stencil Printer:

Model	P3	P6	P12	P15
Accuracy	+/- 0.05mm	+/- 0.05mm	+/- 0.05mm	+/- 0.05mm
PCB Size	300 x 350 mm	600 x 350 mm	1200 x 350 mm	1500 x 350 mm
Platform size	320 x 400 mm	700 x 400 mm	1350 x 400 mm	1650 x 400 mm
Stencil Size(mm)	370*470-550*650	370*470-550*650	370*470-1500*650	370*470-1750*650
PCB Thickness	0.2 - 6 mm	0.2 - 6 mm	0.2 - 6 mm	0.2 - 6 mm
Stencil Positioning	Manual	Manual	Manual	Manual
Cycle Time	< 10 Sec.	< 10 Sec.	< 12 Sec.	< 12 Sec.
Power Consumption	200 W	200 W	220 W	220 W
Power Supply	1 -PH, 220VAC 50/60HZ	1 -PH, 220VAC 50/60HZ	1 -PH, 220VAC 50/60HZ	1 -PH, 220VAC 50/60HZ
Air Pressure	4.5-6 kg/cm	4.5-6 kg/cm	4.5-6 kg/cm	4.5-6 kg/cm
Squeegee Speed	0-200mm/sec	0-1200mm/sec	0-200mm/sec	0-200mm/sec
Dimension	850x750x1650 mm	1050x750x1650 mm	1660x750x1650 mm	2100x750x1650 mm
Weight	280 Kg	300 Kg	356 Kg	430 Kg
Squeegee Length	250mm	250mm	250mm	250mm
Platform Height	950mm	950mm	950mm	950mm
Option: Special size can be customized

Customers' Feedback
Client Background:
A leading smart meter manufacturer approached us with the need to establish a new PCBA conformal coating for their production facility. They required a complete solution, from planning to execution.
Our Solution:
We provided a one-stop service that included layout design, equipment selection, and installation. Our team worked closely with the client to understand their specific needs and production goals. We then customized the assembly line to ensure efficiency and scalability.
Outcome:
The conformal coating was successfully installed and operational within the agreed timeline. The client's production capacity increased significantly, allowing them to meet the growing demand for smart meters in their market.Client Background:
An automotive electronics manufacturer needed to set up a PCB conformal coating line to expand their product offerings. They were looking for a reliable partner to help them build this new line from scratch.
Our Solution:
We offered a comprehensive service, starting with a detailed analysis of their requirements. Our team designed a tailored conformal coating that met the high standards of the automotive industry. We also provided on-site installation and training to ensure smooth operation.
Outcome:
The new conformal coating line was completed on time and met all industry standards. The client was able to enhance their production capabilities, resulting in higher output and better quality control in their automotive electronics production.Client Background:
A set-top box manufacturer wanted to establish a new coating line to increase production capacity and improve product quality. They needed a partner who could deliver a turnkey solution.
Our Solution:
We provided a one-stop service, including factory layout design, equipment sourcing, and installation. Our team ensured that the assembly line was optimized for the client's specific needs, focusing on efficiency and ease of use.
Outcome:
The conformal coating line was successfully launched, and the client saw immediate improvements in production speed and product quality. This allowed them to better compete in the rapidly growing set-top box market.Certifications Packing & Delivery Standard Wooden Case with Vacuum PackageShipping Way:
By air, for sample and small package, international express like DHL, UPS, EMS...
By sea, for large package and quantity;
Other ways as customer requested.
Delivery Time:
Within 35 Days.Our Company About I.C.T:I.C.T is a leading provider of factory planning solution. we have 3 wholly-owned factories, providing professional consultation and services for global customers. We have more than 22 years of electronic industry experience, through our superior resources in China to provide global customers with systematic overall solutions. We not only provide a complete set of equipment, but also provide full range of technical support and services, and give customers more reasonable professional advice. We help many customers to set up factories in led, tv, mobile phone, dvb, ems and other industries all over the world. We are trustworthy. Exhibition FAQ

Q: What we can do for you? A: One-stop SMT Solution Supplier; Reliable SMT Partner.

Q: Are you a trade company or manufacturer? A: Full SMT machines maufacturer for smt line in China; OEM & ODM service are available.

Q: What is your delivery date? A: About 35 days after receipt of payment.

Q: What is your payment terms? A: 30% deposit in advance and 70% balance before shipment.

Q: What your main customers? A: Foxconn, Vtech, Sumida, Kemet, Vishay, Canon, Jabil etc.

Q: Why choose you? A: Leading SMT Supplier in China; Professional Supplier Trade assurance to USD 560,000+; Professional after-sales service team.
