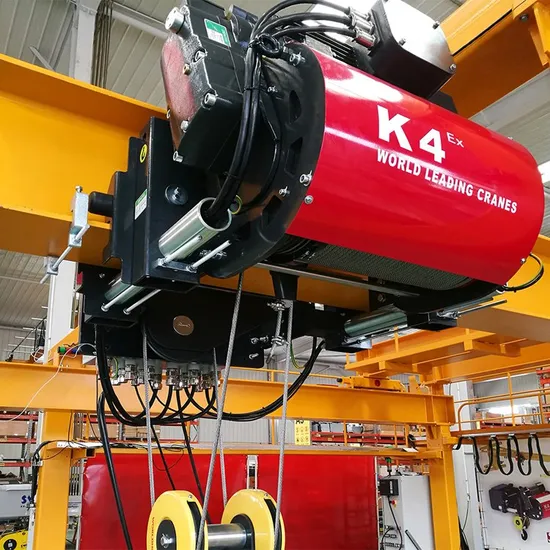

Germany Technic 6.3ton 10ton Euro Type Vvvf Electric Hoist

Product Description

Dingya cranes have developed various produccts to meet different working conditions.Stepless control, smoothly running, silence & maintenance free are the best choice for handing.Schneeider contactor inverter;FEM/DIN standard; 60% ED rating; H insulation.

TYPE	European Type Overhead Hoist & Winch
SWL	5T | 6.3T | 10T | 16T | 20T | 25T | 30T | 40T | 50T | 75T | 100T | 200T | 300T | Customized
Lifting Height	3 meters to 40 meters
Working Level	M3-M6
Lifting Speed	5/0.8 m/min double speed OR Customized
Trolley running speed	0-20 m/min frequency conversion OR Customized
Warranty time	18 MONTHS AFTER SHIPMENT
Lifting Motor	Inverter motor

Gear Reducer	Hardened tooth gear ( HRC 60 )
Hook	DIN15400 Standard
Electric Panel	Schneeider brand
Control Method	Remote control OR Pandent
Industrial Voltage	380V 50HZ 3P AC OR Customized
Working temperature	-20~45ºC OR Customized
Wire Rope	Galvanized steel wire rope (2160N/mm2)

Electrical Control System
Schneeider electrical components
200,000 times service life
Aviation plug, class IP55 protection IEC standard testing
Satey Monitoring System
Overloading counter
Overload protection
Motor starts counter
Overheating protection
Brake-ware supervision
Ethernet/4G remote access
Lifting running time counte
Hoist safe working period countr(SWP%)
Variable Frequency Motor
Compact design: motos + brake + gearbox
HRC60 hardened gear
Stepless travelling
Heavy duty 60% ED rating
Class IP55 protection, F Insulation
Electromagnetic Disc brake
Safety Wire Rope Group
Korea KIS 2160MPa steel wire rope,
DIN34CrMo4 hook, T-level hook
360° Rope guide, Complete surrounding
Optimized larger diameter Q345B drum
Lower/Slow-down/Upper/Top lifting limit switch
Phase sequence control

Anhui Dingya Crane Co.,Ltd has served more than 300 customers in the 18 years since its establishment. Our clients work in all walks of life. Including energy equipment, mechanical processing, manufacturing, iron and steel metallurgy, aerospace industry,power electronics, scientific research, automobile manufacturing, high-speed rail transportation, etc. The following is our cooperation case.

Anhui Dingya Crane CO.,LTD is professional crane manufacturer.We integrate crane research and development,manufacturing,sales,installation and service.Our products including overhead bridge crane,gantry crane,jib crane,electric hoist,crane trolley,magnet and related lifting equipment,etc. Based on crane optimized design and variable frequency drive technology,our cranes are small in size,light in weight,good in maintenance-free performance,high work continuity,and optimized configurations,such as galvanized high-strength steel wire ropes,disc brakes,hard tooth surface reducers,programmable Lifting limit,ductile iron rope guide,large diameter weldingdrum,etc.,are innovative products in the domestic crane field. Dingya has now exported to Poland,Ireland, the United Arab Emirates, Israel, Russia, the United States, Saudi Arabia, Uzbekistan, Côte d'Ivoire, Argentina, Palestine, Chile, Canada, Italy, Colombia, Spain and many other countries in Southeast Asia (Indonesia, Philippines, Laos, Myanmar, Cambodia, Vietnam, India , Mongolia, South Korea)…

The crane hoist is a customized product. Please click " Chat Now "or " Contact Supplier " to contact us, we will calculate the detailed price for you as quickly as possible.

The Hoist and Electric Conponents are packed in export wooden boxes. Not to be squeezed or lost. Main Beam & End Beam will be wrapped with rainproof cloth and foam film to protect the paint from damage.We have deal with Sea Transportation, Truck Transportation, Train Transportation, and Air Transportation. Cooperate directly with shipping companies, with many routes and preferential prices. You can rest assured to choose the most suitable transportation plan for you.And we have professional packing workers to handle the container packing and loading. Or if you need, we can provide detailed packing volume details for you to check with you own shiping agent, and you can better to check the transportation cost.

Q1. Can the hoists be customized?Yes, every customer's factory layout is different, all of our products can be customized depend on customers' requirements. Please give us the information as clear as you can, so we can give our best design to suit for your demands.Q2. How many operation methods for my selections?Wirelss Remote Control & Wired handle.Q3. I have low headroom in my workshop, is it possible to install a crane in it?We have special products for low headroom workshop, our engineer can give the best design according to your dimensions. Q4. Do you supply lift tools?Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...Q5. Outdoor use, the winter temperature is very low, the service life will drop?We will upgrade the steel plate material to Q355, the selection of low temperature lubricating oil, at the same time, the electric control box is equipped with heating system, can effectively extend the service life.Q6: In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following information to us:1. Lifting capacity.2. Lifting height. (hook center to ground)3. Power supply: Voltage.4. Working condition: What kind of material to lift? The daily average working time?
