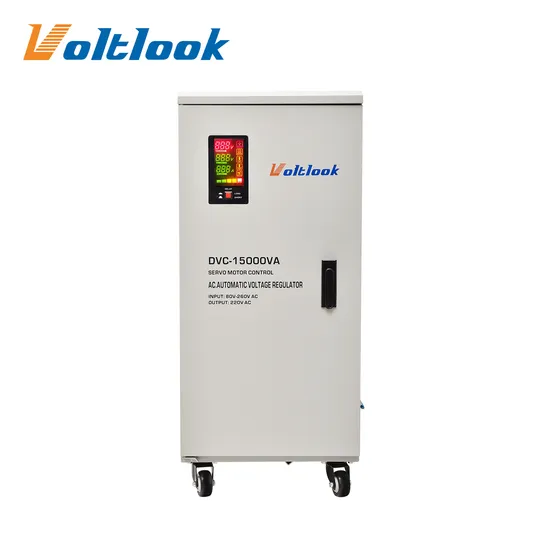

Voltlook 220V Digital Servo Motor Automatic Voltage Stabilizer with Bypass Overload 15000W 80V to 260V

Product Description

DVC, SVC, ST, SVR Series Single Phase Servo Motor AC. Automatic Voltage Regulator with LCD Digital Display
Features:
+ Single phase servo motor control
+ High precision regulation output
+ Pure copper winding coil, variable transformer an buck-boost transformer
+ Analog meter display
+ Fully automatic MCU controlled circuit
+ Available power capacity from 0.5KVA to 30KVA
+ Full protection: over voltage, under voltage, overheat, overload, sag, surge, spike and short circuit
+ Delay Time to protect the equipment from rapid fluctuations
+ CE certified
Guidelines For Choosing an AVR:
+ Measure and Classify Your Electrical Load Before Selecting an AVR
+ If Load is Motorized (Aircon, Ref, Washing Machine, Drill, Big Printer, Coffee Machine, Medical Equipment), Purchase 3x Capacity
Example, Use a 3000w Avr or Higher for a 1000w Rated Coffee Machine, because motorized surge is 3x the Total Load
+ If Load is Electronic or Electrical (Heater, Computer, TV, Sound System, CCTV, LED Lighting), Purchase 2X Capacity
Example, Use a 1500w Avr or Higher for a 600w Rated Computer or Sound System, because electronic surge is 2x the Total Load
+ Relay Type AVR are more durable than Servo Type
+ Servo Type AVR are more accurate and sensitive than Relay Type
+ Time Delay is important for Aircon and Ref, but not for CCTV
Specifications

Model

SVC-500VA

SVC-1000VA

SVC-1500VA

SVC-2000VA

SVC-3000VA

SVC-5000VA

SVC-7500VA

SVC-10KVA

SVC-15KVA

SVC-20KVA

SVC-30KVA

Power

500VA

1000VA

1500VA

2000VA

3000VA

5000VA

7500VA

10000VA

15000VA

20000VA

30000VA

Technology

Fully automatic MCU controlled circuit + toroidal transformer

Transformer

Copper Servo Motor Type Transformer

Input

Input voltage range

150-250V AC / 100-250V AC

Input frequency

50Hz

Output

Output voltage

220V AC / 220V+110V

Output precision

± 3%

Delay Time

6s /180s selectable

Efficiency

≥95%

Phase

Single phase

Display

Analog meter

Input voltage & Output voltage separately

LED indicators

Green LED

Indicating power ON/OFF

Yellow LED

During delay,this LED flashes,delay finished,goes off

Red LED

Output suppressed, indicating the machine is executing protection,when protection finished,goes off

Protection

High voltage

Output cutoff + red LED

Low voltage

Output cutoff + red LED

Over load

Output cutoff

High temperature

Output cutoff

Short circuit

Circuit breaker trip off

Cooling system

Air Cooled

Smart Fan (Automatic Startup at 65°C)

Safety standards

CE (LVD + EMC) , EN60950, EN55024

Operating conditions

Operating temperature

-5ºC - 45ºC

Stroage temperature

-15ºC - 45ºC

Operating relative humidity

10%RH - 90%RH, Non-condensing

Applications:
+ Refrigeration equipments: fan, refrigerator, chest freezer, cooler and air conditioner
+ Kitchen appliances: microwave oven, rice cooker
+ Entertainment appliances: TV, DVD, VCR, DVB, HiFi
+ IT & Office equipments: PC, workstation, fax machine, photocopier
+ Heating systems: gas boiler, circulation pump
