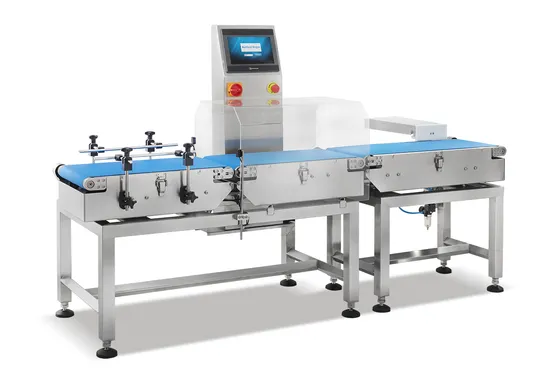

Weight Checker Belt Conveyor Machine Automatic Check Weigher

Product Description

Weight Checker Belt Conveyor Machine Automatic Check Weigher

Details Description:
1.SUS304 Stainless Steel;
2.Belt:Food class level;
3.Belt Width:120/ 220/300/ 400/500mm;
4.Feeding: Photoelectric sensor;

Details Introduction:
1.Rejection mode: Air blow/Swing Arm/Pusher
2.HMI: 10" Color touch screen;
3.Controller: MCU/PLC(optional);
5.Language:16 different languages;
6.Production Record: Available to download;
7.Malfunction alarm:Digital code show on Screen;

Application:
widely used in electronics, pharmacy, food, beverage, health products, cosmetics, light industrial and agricultural products, etc. Not only is it used to check if a single finished product is within the preset target weight but also to check missing parts of a full carton (missing bottles, boxes, pieces, bags, cans, etc.)

Main function & Features:
1. Report Function: Built-in report statistics. Reports can be generated into EXCEL format and automatically generate a variety of real-time data. USB can store over-one-year statistical data and keep abreast of production status.

2. Interface Function: Standard reserved interface for convenient data management; able to communicate with PC and or other intelligent devices.

3. Centralized Control: Able to achieve centralized control by one computer / HMI to multiple check weighers.

4. Parameter Restore Function: Original program can be restored.

5. Versatility: Standardization of the whole machine as well as that of HMI to complete weighing operation for different kinds of products.

6. Easy to Change: Able to store a variety of recipes, convenient replacement of product specifications.

7. Simple Operation: WEINVIEW color HMI with intelligent and humanized design.

8. Easy Maintenance: Dismountable belts for convenient maintenance and cleaning.

9. Adjustable Speed: Frequency conversion control motor used to adjust the speed when necessary.

10. High Speed and Accuracy: Equipped with high precision HBM digital load cell for fast and accurate sampling.

11. Zero Tracking: Manual or auto clearing and dynamic zero tracking.
Detailed Photos
Product Parameters

Model	TYA-CW120	TYA-CW220	TYA-CW300	TYA-CW400
Weighing Range	200g	1000g	10kg	20kg
Weighing Accuracy	±0.2g	±0.2g	±2g	±5g
Weighing Resolution	0.1g	0.1g	0.1g	0.1g
Max Speed	150 P/M	120 P/M	65 P/M	50 P/M
Belt Width	120mm	220mm	300mm	400mm
Weighing Belt Length	200mm	400mm	450mm	570mm
Infeed/Outfeed Belt Lenght	200mm/380mm	400mm/820mm	450mm/800mm	570mm/930mm
Power Supply	AC220V ±10%/1P/0.5KW	AC220V ±10%/1P/0.5KW	AC220V ±10%/1P/0.5KW	AC220V ±10%/1P/0.5KW
Control System	High speed A/D sampling controller	High speed A/D sampling controller	High speed A/D sampling controller	High speed A/D sampling controller
Pre-set Prod. No.	99	99	99	99
Belt Height	750±50mm	750±50mm	750±50mm	750±50mm
Optional Rejector	Air Blower	Air Blower/Pusher	Air Blower/ Swing Arm/ Pusher	Pusher

Certifications
Company Profile Anhui UUPAC Intelligent Equipment Co., Ltd. was established in 2009, focusing on the R & D, manufacturing and sales of Multi-hea Weighers, VFFS, Conveyors and Inspection equipment, the products are exported to more than 80 countries and regions.
Company's 10,12,14,20,24,32 head microcomputer control and PLC control system intelligent combination scale, automatic weight detection machine and 1,2,4,8 head linear scale,creates and applies the combination scale developed by Siemens PLC and Allen Bradley PLC in China, which fills the technical gap of the same industry in China.
Anhui UUPAC Intelligent Equipment Co., Ltd. adheres to customer-oriented, provides innovative, attractive and easy-to-use products for customers, and is committed to improving people's working conditions.Pre-sales guidance service: provide professional solutions from workers, equipment, packaging materials, packaging methods and working environment.


After Sales Service
Pre-sales guidance service: provide professional solutions from workers, equipment, packaging materials, packaging methods and working environment;In sales training service: for the first time, the appointed technicians are used to guide the equipment operators in professional operation and equipment maintenance, and the maintenance manual is provided;After sales timely service: 12 months of equipment warranty period, 24 hours to respond to the after-sales service system.

FAQ
FAQ:1. How to install the new machine?our machines are designed easy for installation; Installation video is also available. If needed, we'll arrange professional engineer to service overseas if buyers bear related cost.2. How to solve the problems during using the machines?We have experienced after-sales team ready to solve the problems for our buyers. Buyers describe the problems to us by email or telephone; sometimes we need you to supply the problem pictures and videos for our engineers for reference, we will try to discuss with buyers and try to get the most effective solution in shortest time. If necessary, we can arrange the most professional engineer to go to buyer's factory for solving problems as soon as possible.3. What's your warranty period and spare parts supply?We offer one year warranty and life-long maintenance. In the first year, if any parts broken not occurred by human factor and parts not in the list of 1% free spare parts, we will supply the new replacement parts freely.4. Do you supply OEM service?Yes. OEM service is available. Our designer would make your private idea into being. We will protect your sales area, ideas of design and all private information belonged to you.
