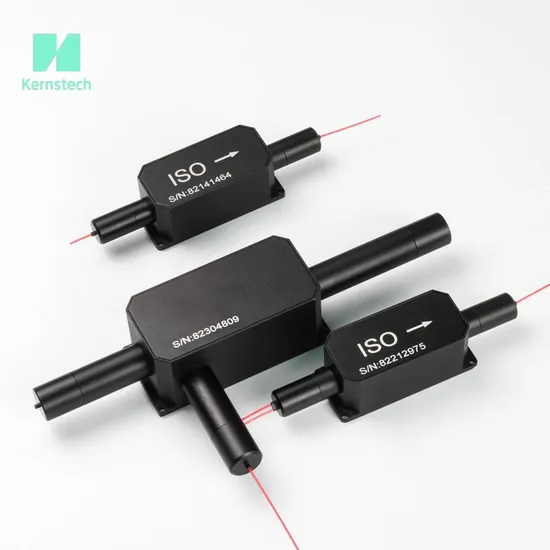

10W High Power Optical Online Isolator 1064nm Isolation for Fiber Lasers Cable Connector

Product Description

10W High Power Optical Online Isolator 1064nm Isolation For Fiber Lasers
Product Description Features
Low Insertion LossHigh Return LossHigh Stability & ReliabilityHigh lsolationApplications
Test InstrumentFiber Optical LaserMOPA Fiber Optical LaserPM Optical Fiber AmplifierSpecifications

Parameter	Unit	Spec
Center Wavelength	nm	10,641,030
Operating Wavelength Range	nm	±5
Typ. Peak Isolation @23ºC@23°ºC	dB	30
Min.Isolation @23ºC	dB	26
Typical Insert loss@23ºC	dB	0.8
Max.Insertion Loss@23ºC	dB	1.0
Min. Extinction Ratio@23ºC(PM Fiber Type)	dB	20
Max. Polarization Dependent Loss@23ºC(Single Mode Fiber Type)	dB	0.15
Min. Return Loss(Input /Output )	dB	45
Max. Average Power	W	1 , 2, 5, 10 or Specified
Package Dimensions	mm	65x17x16
Max.ns pulse peak power	kW	10 or Specified
Max.Tensile Load	N	5
Operating temperature	ºC	+10~+50
Storage temperature	ºC	0~+60

Note: When utilizing connectors, handling power is restricted to 1W. Insertion loss will increase by 0.3dB, return loss will decrease by 5dB, and the extinction ratio will diminish by 2dB. The connector key is aligned with the slow axis.
Package Dimensions

Single

Dual
