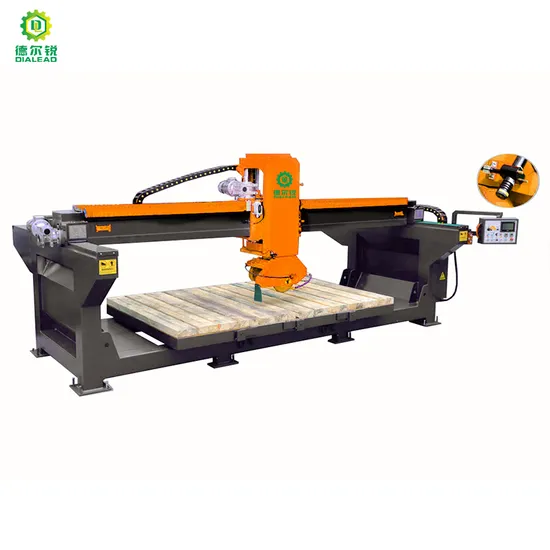

Dialead High Quality Integrated Bridge Infrared Stone Surface Tile Cutting Machine

Product Description

Product Description
DIALEAD is the top stone machine and stone tools manufacturer in China with a history of more than 20 years.
Infrared Intergrated Stone Cutting Machine adopts microcomputer control, touch-type operation interface, and wireless remote control, which makes the man-machine dialogue very flexible and convenient.
The main control components are all international famous brands. The cross beam adopts oil-immersed double V-shaped track. the horizontal cutting adopts stepless frequency conversion speed regulation. The longitudinal slicer adopts linear guide rail and high-precision magnetic ruler for counting, which ensures the smooth operation and stable accuracy of the machine in running.
This stone cutting machine is designed as an integrated one, which is easy to transport and install, also make sure the stable running of the machine. The working table can rotate within the range of 0-85 degrees, the machine automatically rotates 90 degrees. The machine can be used to process various specifications of materials such as rectangles and lines.

Technical Data
All technical data can be customized to meet your specific needs.

MODEL	UNIT	DLYTJ500A-1	DLYTJ500A-2	DLYTJ500A-3	DLYTJ500A-4
BLADE DIAMETER	MM	350-500	350-500	350-500	350-500
MAX WORKING DIMENSION	MM	3200*2000*130	3200*2000*130	3200*2000*130	3200*2000*130
WORKBENCH DIMENSION	MM	3200*2000	3200*2000	3200*2000	3200*2000
HEAD ROTATING DEGREE	N	0-90	0-90	0-90	0-90
BLADE TITLTING DEGREE	N	---	0-45	---	0-45
WORKBENCH ROTATING DEGREE	N	0-85	0-85	0-85	0-85
TABLE ROTATING DEGREE	N	---	----	0-45-360	0-45-360
MAIN MOTOR POWER	KW	18.5	18.5	18.5	18.5
WATER CONSUMPTION	M3/H	3.5	3.5	3.5	3.5
MACHINE WEIGHT	KG	6500	7000	6500	6500
OVERALL DIMENSION	MM	6000*3500*2600	6000*3500*3500	6000*3500*2600	6000*3500*2600

Detailed Photos
Packaging & Shipping
Company Profile
Quanzhou Dialead Stone Machinery Co., Ltd. is a high-tech enterprise founded by Dialead Stone Tools, together with several domestic well-known engineering colleges, stone machinery technicians and software system companies. Dialead Stone Machinery main products include five-axis bridge cutting machine, four-axis bridge cutting machine, stone copying machine, baluster machine, engraving machine, block cutting machine, polishing machine and etc. With constant technology innovation, stone processing industry has now developed to intelligent automatic processing from initial rough processing. Dialead is always devoted to the improvement of its technology and making contribution to the development of the industry.
Engaged in the production of stone tools (diamond segment, saw blade, engraving knives, stone polishing abrasives) for more than 20 years, Dialead has a good knowledge of stone tools and specific needs of different markets. When it comes to stone machinery, Dialead can well match its stone machines with its stone tools to achieve the best processing effect. This is what tells Dialead apart from other stone machinery suppliers in China.
With complete R & D and production system, Dialead is seeing its sales map bigger and bigger. For domestic market, Dialead Stone Machinery has set up offices in many cities. For international market, Dialead products are exported to more than 60 countries and regions, such as Russia, the United States, Ukraine, Kazakhstan, India, Poland, Jordan, Oman and etc.
Dialead attaches great importance to intellectual property and certification in its development. Dialead has obtained more than 30 patent and more is in the way. All Dialead machines are CE certified to make sure all details meet international standards.
Certifications
Exhibition

FAQ
