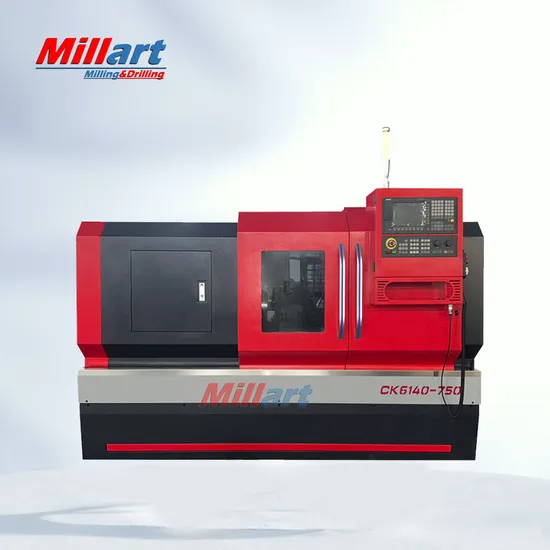

Ck6140 Small CNC Flant Bed Lathe Machine, CNC Lathe Machine

Product Description

Product description:
1.It can automatically process the inside and outside cylinder surface, cone surface, circle arc surface, end face. It can also turn the single and multiple threads in metric , inch and other standard.
1.high rigidity pedestal and wider lay board are suitable for heavy cutting
2.four station electric turret
3.inverter stepless speed
Technical parameter :
Specifications:

Specification	CK6140
Max.swing over bed	400mm
Max. Swing over cross slide	250mm
Max. Processing length	chuck 600 mm/ collet 700mm
Bed width	400mm
Spindle bore	48mm
Max. diameter of the bar	41mm
Spindle nose	A2-6 (A2-8 optional )
Spindle speed	150-2500rpm
Spindle motor power	5.5kw
X/Z axis travel
X/Z axis torque	5.5/7.5 N.m (7/10N.m optional)
X/Z axis rapid feeding speed	8/10 m/min
X/Z axis position accuracy	0.01/0.015mm
X/Z axis repeatability	0.012/0.013mm
Tool bar section	20*20mm
Tailstock sleeve dia.	Φ60mm
Tailstock sleeve travel	100mm
Tailstock taper	MT4#
N.W.	1800KG

Standard accessories:
Fanuc 0I mate TD control system
inverter main motor 5.5kw
4 station electric turret
200 mm manual 3 jaw chuck
manual tailstock
integrated automatic lubrication system
coolant system
lighten system
Optional accessories:
Servo motor 5.5/7.5kw
Invertor motor 7.5kw
6 station electric turret
8″Non-through hole hydraulic chuck
8" thru-hole hydraulic chuck
8″Non-through hole hydraulic chuck (Taiwan)
8" thru-hole hydraulic chuck( Taiwan)
Steady rest
Follow rest
Auto chip conveyor
Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.
