Fully Automatic 5 Gallon PC Plastic Drum Making Machinery (82PC)

Product Description

Company Profile
Product Description

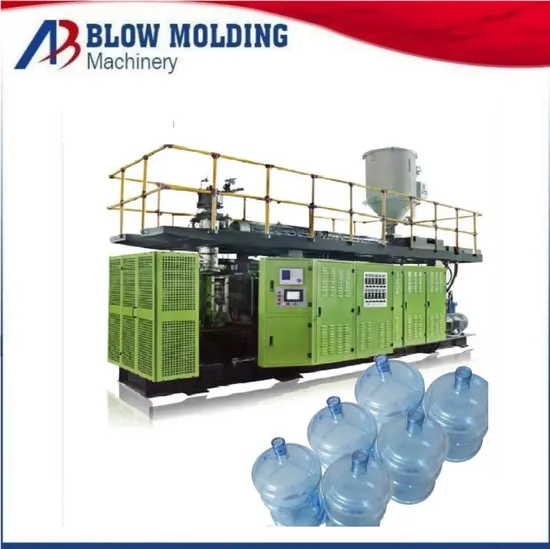

ABLB82 blow molding machine is suitable to produce 5 gallon PC bottles and containers in all shapes. We also have CE and ISO9001 certificate for you and offer engineer to your country to help you set up the machine. High quality assurance will be provided for you.
Equipped with special designed material storage
Silencer and oil system are used to reduce vibration and lubricate
The machine can be operated in step-by-step mode and also semi-auto mode.
Wide-mouth and irregular shape also can be produced in this machine.
For more information. About this machine, don't hesitate to contact us. Product Parameters

Max. product volume	5 gallon
Output capacity	90 pcs/h
Screw diameter	80mm
Screw L/D ratio	25 L/D
Screw drive power	30 KW
Screw heating capacity	16KW
No. of heating zone	4 zones
Output of HDPE	100 KG/H
Oil pump drive power	22 KW
Clamping force	210 KN
Max. size of mold	350-780mm
Mold stroke	550x650mm
Max. die diameter	280mm
Die heating power	5.3 KW
Die heating segements	4 zones
Blowing pressure	0.8 mpa
Air volume	0.8 M2/MIN

Detailed Photos
Our Advantages
Our service
FAQ
1. Can the machine customized only for my products?
Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of
parts special request.
2. How about the molds ?
APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth
matching before shipping. Mold raw material is various for optional.
3. What is the business item for this project ?
a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d. Container needed: One 20GP container.
4. How is APOLLO after-sales service?
A. Inspection
Before delivery, APOLLO takes responsibility to finish the machine in time and send the righ t samples to clients for approval.
Clients also are welcome to APOLLO factory to inspect the testing of machine, so that the provided machine could be safely and
smoothly put into operation once reach the client`s factory.
B. Debugging Instruction
APOLLO takes responsibility to have debugging overseas, and client abroad please sends in vitation forward of time to engineer of
APOLLO , provides the engineer with round-trip tickets, accommodation, food, vehicle and USD80/Day/Person as salary; Before
Tonva`s engineers arrive at the buyer`s factory, the buyer must make sure that all of equipment are put in the correct position in
their factory, the raw material, power and water supply must be ready in the factory.
C. User Training
APOLLO takes responsibility to indoctrinate technical training in both APOLLO and clients' factory to the users, so that they
could understand the machine features and could operate the machine by themselves.
