70-80t/D Cottonseed Oil Press Production Line Hot Selling in Pakistan

70-80t/D Cottonseed Oil Press Production Line Hot Selling in Pakistan

US$9,300.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZY204-3
Structure
Horizontal
Press Series
Fourth
Voltage
380V
Processing Capacity
20-25 Tons/24 Hours (Cottonseed)
Extraction Temperature
80-105 ºC
Feeding Form
φ 900 X 1 Layer
4-Pole Main Motor
30kw
Transport Package
Export Wooden Crates
Specification
2.85*1.85*3.2mm
Trademark
sanbang
Origin
Henan
HS Code
8479200000
Production Capacity
300 Units Per Year

Packaging & Delivery

Package Size
285.00cm * 120.00cm * 230.00cm
Package Gross Weight
3700.000kg

Product Description

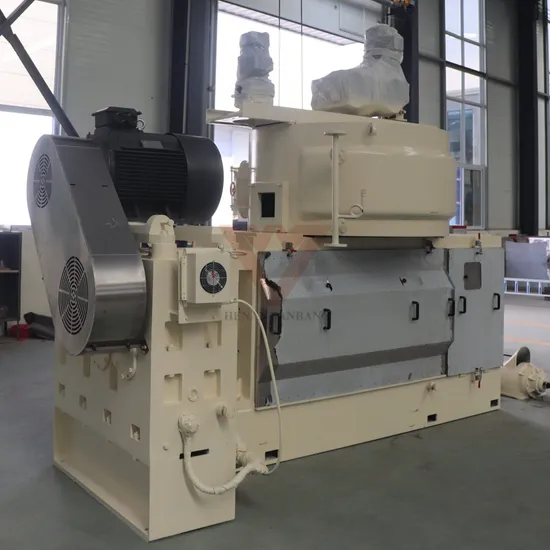

70-80T/D cottonseed oil press production line hot selling in Pakistan Detailed Photos
Product Parameters
Main technical parameters
1. Processing capacity: 20-25 tons/24 hours (cottonseed)
2. Extraction temperature: 80-105 ºC
3. Extraction moisture: 3% -7%
4. Residual oil in cake: 6% -9%
5. Cake thickness: 6-25mm
6. Feeding form: storage pot φ 900 x 1 layer
7. Spindle speed: 24.5 rpm, steamer shaft speed: 32.8 rpm, feed shaft speed: 63.5 rpm
8. Single machine total power: 4-pole main motor 30KW, feeding reducer BLD22-23-5.5kW-4M
9. External dimensions: length 2.85 meters x width 1.85 meters x height 3.2 meters, net weight of equipment: 3.5 tons
10. Fill GB443-64.HJ30 mechanical oil into the gearbox to the centerline of the oil mark
11. High quality steel 20CrMnTi heat treatment process is used for screw and bar pressing, and the spindle is 40Cr
12. Gearbox reducer pulley φ 500. Motor wheel φ two hundred and ten
13. Host triangle belt, length C4572, 5 pieces
Product Description
Equipment usage:
The Sanbang spiral oil press is suitable for more than 50 types of oil crops, including peanuts, soybeans, rapeseed, cottonseed, sesame seeds, autumn sunflower seeds, sunflower seeds, tea seeds, castor seeds, corn germ, grape seeds, mustard seeds, perilla seeds, Moringa seeds, rubber seeds, tung oil seeds, pomegranate seeds, pumpkin seeds, and grass seeds.
Main structure
This equipment consists of the following main components: steamer, feeding mechanism (feeding mechanism), squeezing cage, and squeezing screw shaft (package
Including the calibration cake mechanism and transmission device.
Performance characteristics:
The ZY202/204 pre press machine has process characteristics suitable for pre pressing. Under normal pre-treatment conditions, its characteristics are:
1. Large processing capacity. The workshop area, power consumption, operation, management, and maintenance work have correspondingly decreased.
2. The structure of the pressed cake is loose without crushing. Beneficial for solvent penetration.
3. The oil content and water content of the pressed cake are suitable for solvent extraction.
4. The quality of the extracted oil is better than that of one press or one extraction.
model YZY200A-3 YZY200BL(cottonseed) ZY202-3 ZY204-3
Processing capacity 8-10T/D 20-25T/D 40-50T/D 70-80T/D
Residual oil rate of dry cake 6-8 6-9 14-18% 12-18%
power 18.5KW 30KW 30KW 30+5.5+3KW
size 2850X1850X3270MM 2850X1850X3200MM 2900X1850X3640MM 2900x1850x4100MM
weight 5500KG 3700MM 5500kg 5800kg
