Network Cable FTP, U/FTP CAT6 with ETL CE CPR RoHS

Product Description

China Factory Price

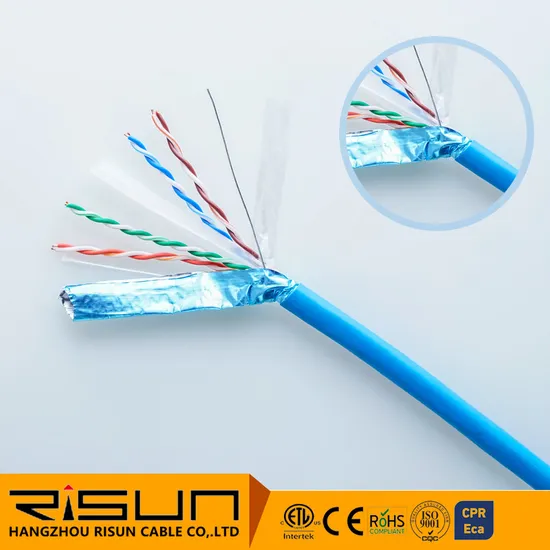

Copper CPR F/UTP CAT6 Network Cable Lan cable ethernet cable
Category 6 shielded Twisted Pair F/UTP Installation cable. OEM custom-made production according to different customers' request.
Except RISUN brand, we also accept OEM.
Product Description
Configuration:
1. Conductor: 24AWG, 23AWG, Bare copper
2. Insulation: HDPE
3. Cores/Pairs: 8/4
4. Sheath: PVC (PE, LSZH)
Options: Jelly Compound, Jacket: UV, FR, RoHS complied.

Mechanical Properties:

Elongation	Min. 300%
Temperature Range	-15 up to +70° C
Bending radius	≥ 8 x Diameter (mm) Installation

Electrical Properties:

Conductor Resistance	Max. 75 ohm/km
Resistance Unbalance	Max. 5%
Cap. between cond. pair	56 nF/100m
Velocity of Propagation	69%
Impedance	100+/-15 ohm

Technical Performance:

	Attenuation	RL	Next	DELAY	EL FEXT	PS Next
(Mhz)	≤dB/100m	≥dB	≥dB	≤ns/100m	≥dB/100m	≥dB/100m
1	2.03	20.0	74.3	570.00	67.8	72.3
4	3.78	23.0	65.3	552.00	55.8	63.3
8	5.32	24.5	60.80	546.73	49.7	58.8
10	5.95	25.0	59.3	545.38	47.8	57.3
16	7.55	25.0	56.2	543.00	43.7	54.2
20	8.47	25.0	54.8	542.05	41.8	52.8
25	9.51	24.3	53.3	541.20	39.8	41.3
31.25	10.67	23.6	51.9	540.44	37.9	49.9
62.5	15.38	21.5	47.7	538.55	31.9	45.4
100	19.80	20.1	44.2	537.60	27.8	42.3
200	28.98	18.0	39.8	536.54	21.8	37.8
250	32.85	17.3	38.3	536.27	19.8	36.3

Company Profile
Risun is a manufacturer and exporter of high quality Lan cable/Network cable,coaxial cable, alarm cable, speaker cable, bus cable and telephone cable in China since 2007. More than 95% of our goods for the export market. 17 years of experience in this field makes us very familiar with export handling. We have ETL, CE, Rohs, ISO9001 certification.
Related Products
Packaging & Shipping

Production line
RISUN has four complete production lines. 20 thousands boxes per month.
FAQ
Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?
A: We are factory.
Q2. HOW LONG IS YOUR DELIVERY TIME? A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity and how much items.
Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER? A: Normally, 10kms per one item.
Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA? A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q5. HOW TO PROCEED AN ORDER FOR CABLES? A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. IS IT OK TO PRINT MY LOGO ON CABLES ?
A: Yes. Please inform us formally before our production.
Q7. WHAT IS YOUR TERMS OF PAYMENT?
A: Payment<=60km,100% in advance,payment >=60KM,30%TT in advance ,balance before shipment . WELCOME TO RISUN!!!

Our Tenet: If we can not be the best, we be the most suitable.
