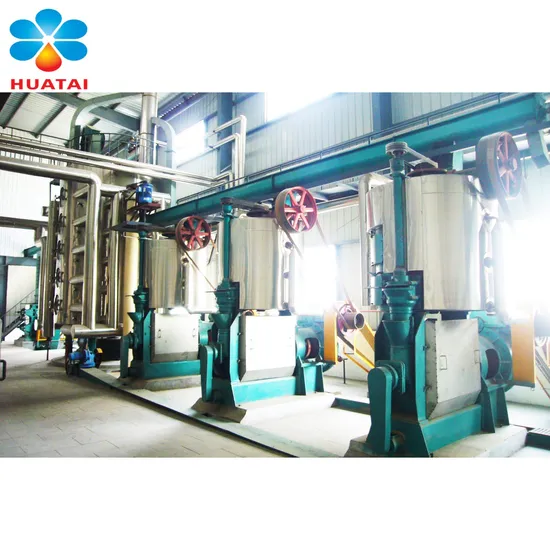

Automatic ISO9001 Sunflower Seed/Cottonseed/Peanut/Soybean Pretreatment/Pressing/Oil Extraction and Refining Expeller Machine

Product Description

ISO9001 Cottonseed/Peanut/Sunflower/Soybean Pretreatment/Pressing/Extraction and oil Refining machine Product Description
Section 1: Pre-treatment process:Cleaning - Conditioning - Cracking and Dehulling - Flaking - Expanding and Cooling - Hulls Crushing - Aging and Pelleting
Benefits of oil pre-treatment: 1.Creat a good production environment;
2.Minimize the total oil loss,increase oil yield and output, also improve the quality of oil and cake meal; 3.Comprehensively
utilize impurities and offal;
4.Perfectly ,match extraction production line,designing different production processes according to different oil seeds.
Section 1:oil solvent extraction machine As for soybean oil solvent extraction machine, that is using oil extraction method
and choosing an organic solvent which can dissolve oil, after contacting with pretreated oil spray or immersion, so that oil can be extracted. As the boliling point of solvent and
oil are different, after evaporation and stripping, the solvent are evaporating and we can get crude oil. Soybean oil solvent extraction machine general flow charts
Solvent-- Extractor--Mixed oil -- 1st and 2nd evaporation -- Stripping tower -- Crude oil
Wet meal -- DTDC toaster -- Meal
Craft features of oil solvent extraction machine
1.Adopting negative pressure evaporation can ensure excellent oil quality
2.Extraction system is highly adaptable and can adapt to different raw material
3.All equipment is provided with exhaust gas absorption systems with excellent absorption effect
4.Full energy-saving design utilizes heat energy for many times and saves steam consumption
Brief introduction of crude oil refinery machine
Oil refinery machine refers to a series of refining processes that can remove phospholipids, FFA, pigment, off-flavor and other impurities in the oil Edible oil refinery or vegetable oil refinery is essential to ensure removal of gums, waxes, phosphatides
Oil refinery plant usually includes the following sections: Degumming, Neutralization, Bleaching, Dewaxing and Deodorization. The process of removing these impurities after oil extraction section is called oil refining. The crude oil obtained either from expellers or solvent extraction plant contains impurities, which must be removed to make the oil edible, more palatable and stable against rancidity upon storage.
Main process of crude oil refinery plant
1.Degumming Section: Some impurity, such as Phospholipid, gum, and protein, can be dissolved into oil when there is no water, but once there is water in oil, these impurity can be dissolved into water. So, in degumming section, we use the hot water to wash crude oil for two-three times to remove these impurity.
2.Neutralizing Section: Crude oil contains much free fatty acid, which is harmful for health. Free fatty acid can have the reaction with caustic soda, during the reaction, it can be saponified and becomes soapstock, then small soapstock pellets will sink and becomes sediment and be pumped out. After neutralizing, most of the free fatty acid will be removed out.
3.Decoloraztion Section: Most of the crude oil has deep color because of the pigments, such as carotene, xanthophyll, etc. We use bleaching earth to remove pigments, because bleaching earth has strong adsorption capacity. Then pump oil into plate filter to remove bleaching earth, then pigment also will be removed out along with bleaching earth, then oil will be
4.Deodorizing Section: Pure oil has no smell, but different crude oil has their special smell because of some volatile matters, for example the oxide for ketones, aldehydes, hydrocarbons. In deodorizing section, we deliver steam into oil continuously, and make sure steam and oil can fully contacted under high temperature and pressure, then volatile matters can be removed out along with the steam.
he method of refining
1. Chemical refining
2. Physical refining
3. Chemical-physical refinining
4.Batch oil refining
5.Continuous oil refining
6.Semi-continuous oil refining
packing and shipping
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements
Our services:
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big item
Part of Product Catalogues

Item	Machine Name	Model	Capacity(T/D)	Power(kw)
Pretreatment and prepressing equipment	Bucket elevator	DTG series	50-2400	2.2-3.0
	Sprial conveyor	LSS series	50-1000	2.2-11
	Chain dryer	BH series	50-350	4-11
	Softening pot	RHL series	50-1000	15-110
	Cooker	ZCL series	50-1000	15-110
Oil extraction Equipment	Chain extractor	TXJ series	500-4000
	Loop extractor	YHJ series	2000-6000
	Rotocel extractor	GJP series	50-2000
	Desovlentizer-toaster	DTDC series	50-2000
	Mixed oil evaporator	ZF series	50-2000
	Layer steam-striping tower	QTD series	50-2000
	Paraffin absorb system	YXS series	50-2000
	Water bath type device for exhaust gas recovery	XSZZ series	50-2000
Oil refining Equipment	Vacuum dryer	BMTST series	50-1000
	Desolventizing tower	RZG/BMTRT series	50-1000
	Novel decolorizing tower	LYS series	50-1000
	Disc deodorization tower	TCT series	50-1000
	Filling type deodorization	TLT series	50-1000
	Crystallization tank	YJG series	50-1000	3-15
	Decolorization pot	TSG series	3-20
	Deodorization pot	TCG series	3-20
Auxiliary machine	Tube heat exchanger	LN series
	Sprial board heat exchanger	16 series
	Tower type condenser	TLN series
