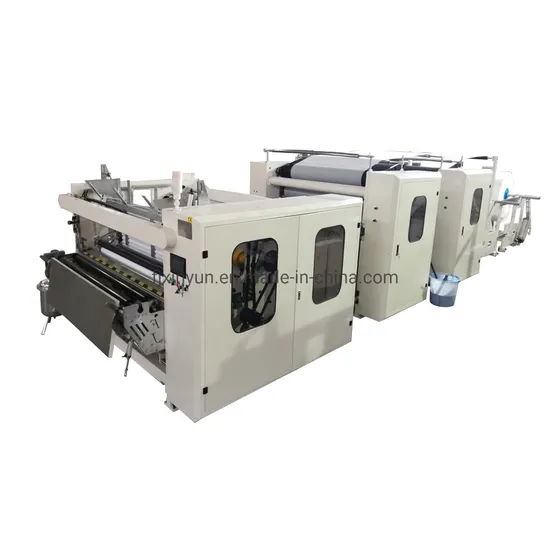

Semi Automatic 4 Rolls Kitchen Towel Paper Machine Production Line

Product Description

XY-TQ-A-C Semi automatic 4 rolls kitchen towel paper production line This production line consists of Automatic Toilet Paper Maxi Roll Rewinding Machine, Semi Automatic Log Saw Cutting Machine and Semi Auto Plastic Bag Sealing Cutting Machine. It is cheap small toilet paper production line. Video link:https://youtu.be/ViuQn3MSYUs XY-TQ-B Full Automatic Toilet Paper Rewinding Machine

Model	XY-TQ-B Automatic rewinding toilet roll paper making machine
Jumbo Roll Max Width	2800mm (Other size can be specified)
Jumbo Roll Diameter	Φ1200mm(Other size can be specified)
Jumbo Roll Inner Diameter	3inches(76.2mm) (Other size can be specified)
Perforation Distance	4 anvil Blades(115mm)(Other size can be specified)
Finished Product Diameter	Φ90~φ280mm
Finished Product Core Diameter	φ38~φ76mm
Program Controller	PLC( INVT)
Unwind Stands	2 Stands(Need to be specified)
Production Speed	0~230m/min
Pneumatic System	3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
Edge-Line Embossing	Steel to steel (Pneumatic Control)
Full Embossment	Steel to rubber.

XY-AI-300 Semi Automatic Log Saw Cutting Machine Functions and Features: This machine is the equipment for roll Toilet Paper and Kitchen Towel, it is the supporting for rewinding and perforated toilet paper machine. The main function is to cut the rewinded big toilet paper into various kinds of standard small rolls. The machine is compose with stander , saw blade drive, adjustment, tension , saw blade grind, operation table and hand table. It is enjoy compact structure , stable running and convenient operation .

Model	XY-AI-300 Semi Automatic Log Saw Cutting Machine
Production speed	30-60 rolls /min
Overall size (m )	1.6x0.6x1.8 (LxW xH)
Power	2.2KW
Voltage	380V 50HZ
Weight	About 0.2T

XY-AI-398B Semi Auto Plastic Bag Sealing Cutting Machine

Speed	10-20 bags/minute
Width of Flat Seal Thread	6mm
Diameter of Round Thread	¢0.5mm
Materials	Nickel Chrome Thread
Power	1.5KW (220V 50HZ)
Air compressor	0.3-0.5mpa (provided by customer)
Dimension (L×W×H)	900*620*960mm
Wight	80Kg

XY-SD-B Automatic Paper Straw Making Machine

speed	10-20 m/min
Kraft paper width	50~70mm
Paper Tube diameter	25mm~100mm (can be customized)
Paper tube layers	2 ~ 30 layers
Paper grams amount	150-400 gsm
Reel Length	adjustable (maximum: 3.0 m)
Defect rate	≤2%
Power	4.0KW 380V 50HZ
Equipment Size(L*W*H)	main machine: 2950*1700*1800mm Glue buckets device: 1250*850*1200mm
Weight	1500Kg

Related Products
XY-TQ-A-D High speed automatic toilet roll paper rewinding machine production line
This production line consists of Wall Type Automatic Rewinding Machine, Double Channel Log Saw and Semi-automatic Packing Machine. From jumbo roll paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It's best choice for the producing hygienic paper products.
XY-TQ-A-H Automatic maxi roll paper making machine production line
Packing and Shipping
Workshop
FAQ
Q: Are you trading company or manufacturer ? A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
After Sales Servies
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours.
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a USB dish of Operation Video with machine,it will help customer to work the machine easy. After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportations and accommodation in buyer's city.
Company Information
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to send an "Inquiry" to get more details!
