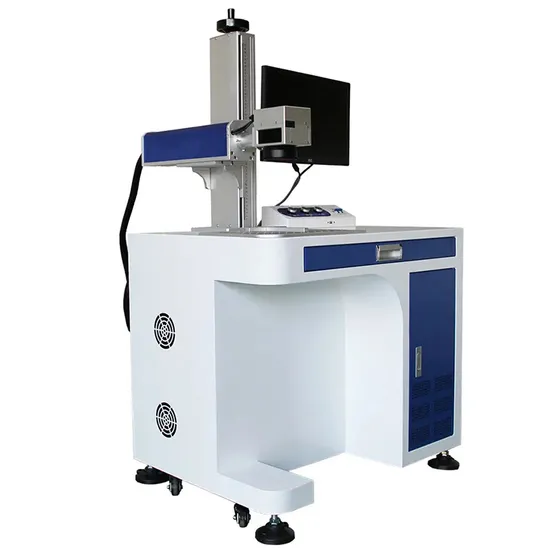

Fiber Laser Marker and Marking System for Marking on Staineless Metal Materials

Product Description

Product Description
Fiber Laser Marker and Marking system for marking on staineless metal materials
Brief Introduction
High-speed laser marker, as easy as printer.
This unique Fiber laser marking machine is used to directly mark and engrave on your metal and plastic products, such as text, letter, figures, graphics, images,serial No., batch No.,barcodes,QR code, etc.
Features
Feathers
Fiber source lifetime up to 100,000 hours. No complicated installation, totally maintenance-free. Friendly interface, very easy operation. Red preview function, help you find the marking position very easily. Digital galvo scanning system ensures high marking speed and accurate marking. Fine laser beam quality, fine marking/engraving result. Compact design and air cooling, require less working space. Energy saving, low power consumption, about 500W only. Non-contact working way, won't deform your products. No need other consumable or assist materials, laser directly mark on your products.
Product Parameters

Item Name	Laser Marking Machine
Model	KMF-20
Laser Wavelength	1064nm
Laser Source	Pulsed Fiber Laser
Laser Wattage	20W/30W/50W/100w
Beam quality	m2<2
Laser repetition rate	20 KHz-100 KHz
Marking speed	≤ 8000 mm / s
Working area	110×110 mm(standard) 70x70 mm,175x175 mm (optional)
Min.character size	0.15 mm
Min line width	0.01mm
Mark depth	≤1 mm
Positioning accuracy	± 0.002 mm
Power consumption	≤500 W
Power supply	AC220V ± 5% , 50/60Hz
Environment requirements	5-35ºC, humidity 30%-80%
Cooling style	Air cooling
Support System	Win 7/10
Supportable formats	PLT, AI, DXF, BMP, JPG,etc.
Packing dimension	92×80×115 cm
Weight	N.W. : 90kg G.W.:120kg

Application
Applicable Materials
All kinds of metal (includiung precious metals), stainless steel,steel, aluminum,brass,copper,gold, high hardness alloys, coated materials,PVC,rubber,epoxy resin,etc.
Applicable Industry
Hardware tools, auto parts and spare parts, jewelry, accessories, electronics, decoration, electrical instruments, watches,stationery,promotional gifts, bathroom products,etc.
