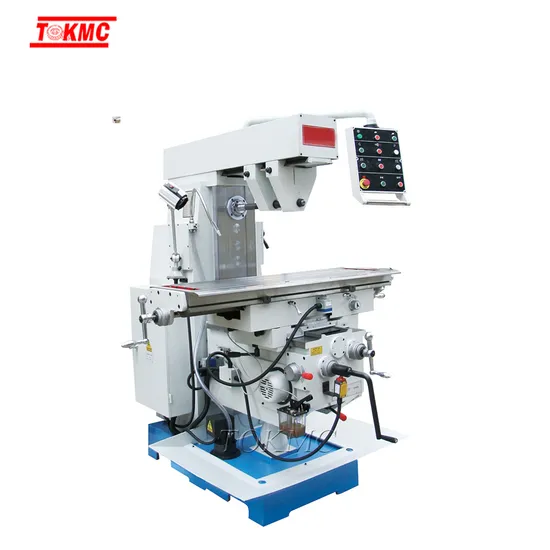

Taladro Fresador Small Knee Type Milling Machine
| US$6,200.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
T320Z
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Condition
New
Power
2.2kw
Work Table Travel
600X300X350 mm
Worktable
1250X320mm 1500X320mm
Transport Package
1680X1600X2200mm
Specification
1550kgs
Trademark
tokmc
Origin
Shandong China
HS Code
84595900
Production Capacity
60 Sets / Month
Product Description
taladro fresador small knee type milling machine| Item | T320Z |
| Spindle taper | ISO40 (V/H) |
| Distance from vertical spindle nose to table | 0-390mm |
| Distance from horizontal spindle center line to table | 0-280mm |
| Distance from vertial spindle center line to column | 465mm |
| Distance from horizontal spindle center line to ram bottom | 160mm |
| Spindle speed range | 12 steps,40-1300 rpm |
| Swivel angle of milling head | +/- 360 degree |
| Table size LxW | 125x320mm 1500x320mm |
| Table travel | 600(800)x300x350mm 1100/300/350mm |
| Table longitudinal and cross travel | 8steps, 22-555 mm/min |
| Table vertical feed Z | 8 steps, 17-190 mm/min |
| X,Y-axis rapid feed speed | 1080 mm/min |
| Z-axis rapid feed speed | 590 m/min |
| Feed motor power | 750w |
| Max.loading worktable | 300kg |
| Table T-slot (No.-width-pitch ) | 3/14/70 mm |
| Y,Z axes guideway | Rectangular |
| X axis guideway | Dovetail |
| Main motor power | 2.2 kw |
| Overall size | 1700x1500x2150mm |
| Package size | 1680x1600x2250 mm |
| N.W/G.W | 1550/1800 kgs |
