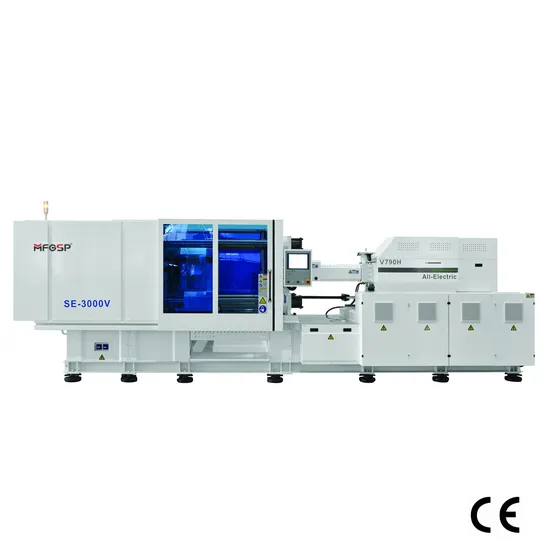

SE-3000V High Efficiency Precision Energy-saving Eco-friendly Intelligence All Electric Injection Molding Machine

Product Description

All Electric Injection Molding Machine

Performance characteristic:
Zero-resistance clamping injection guider structure, heavy loaded guider device supported by linear track, better wear resistance, lower friction and more smooth operation. Optimize mold structure, tie bar no touch with moving platen,no lubrication. The system has high rigidity and strength, guarantee the accuracy of platen parallel excellently.
T-slot & screw fixation platen embedded moldlocating ring design, high-standard clampling system reduces mold loss and makes more easy mold installation.
Fast and smooth mold movement, high torque, less resistance. Clamping servo motorconnects ball screw, flexible operation and simply maintenance. High- quailty belt, warranty 10 years;superior rotating wheel,low inertia.
Top responsibility servo motor and high toreque ball screw is key element, origin Japan technology to keep advantage leading ir the word, precise for mold movement.
Parameter:

MODEL			SE-3000V
CLAMP TONNAGE		kN	3000
SPACE BETWEEN Tl E-BARS		mm	730x680
PLATEN DIMENSION		mm	1020x960
OPEN STROKE		mm	600
MOULD THICKNESS		mm	250-750
EJECTOR STROKE		mm	180
EJECTOR FORCE		kN	49
EJECTOR NUMBER			13
MACHINEWEIGHT		T	14.9
SCREW DIAMETER		mm	45	50	55	50	55	60	55	60	65
INJECTION CAPACITY		cm3	366	452	546	511	618	735	665	792	929
INJECTION WEIGHT (PS]		g	333	411	497	465	562	669	605	720	846
PLASTICIZING CAPACITY (PS)		kg/h	123	150	175	136	212	242	206	226	252
SCREW SPEED		rpm	350			320			320
HEATER BAND			4+1			4+1			4+1
HE/JER POWER		kW	14.4			17.5			20.2
NOZZLE PRESSING FORCE		kN	29.4			39.2			39.2
STANDARD			790			1020			1370
INJECTION SPEED		mm / s	200			160			160
INJETION RATE (PS)		cm3 /s	318	393	475	314	380	452	380	452	530
INJECTION PRESSURE		Mpa	247	200	165	218	180	152	214	180	153
		kgf/cm2	2519	2040	1686	2135	1836	1560	2183	1836	1561
MAX.INJECTION HOLD PRESSURE		Mpa	197	160	132	175	144	121	171	144	122
		kgf/cm2	2015	1632	1349	1707	1470	1186	1746	1469	1249
TOTAL POWER		kW	68.4			59.6			70.2
OPTION			790H			1020H			1370H
INJECTION SPEED		mm / s	350			250			250
INJETION RATE (PS)		cm3 /s	557	688	831	500	602	718	593	706	828
INJECTION PRESSURE		Mpa	247	200	165	218	180	152	214	180	153
		kgf/cm2	2519	2040	1686	2135	1836	1560	2183	1836	1561
MAX.INJECTION HOLD PRESSURE		Mpa	197	160	132	175	144	121	171	144	122
		kgf/cm2	2015	1632	1349	1707	1470	1186	1746	1469	1249
TOTAL POWER		kW	86.3			89.5			100.2
We reserve the right to change specifications without prior notice.

OVERALL DIMENSIONS
PLATEN DIMENSIONS
Application:
The SE series of all-electric injection molding machine are more suitable for household appliance, medical,electronic optics, packaging,auto parts, and other industries with its advantages of high speed, high efficiency, high precision, energy saving and environment cleaning .
