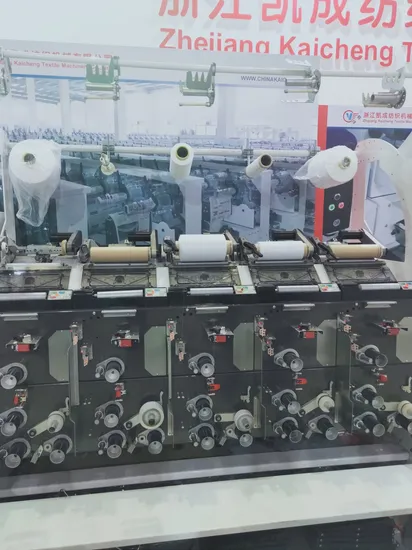

Kc215b Automatic Air Covering Machine Electronic Yarn Winding Machine

Product Description

Product Description
KC215B Electronic Controlled Air Covering Machine Yarn Winder
Applied range: wind FDY+FDY, FDY+DTY, DTY+DTY with air interlace jet; FDY or DTY air interlace winding with spandex etc.
Features
A. Computer intelligent control system;
Ensures convenient process adjustments and unlimited combination.
B. Intelligent electronically controlled winder can adjust all winding parameters;
C. Reduce power consumption cost;
Winding and overfeeding systems are driven by brushless 36V DC motors.
D. Yarn tension consistency has been achieved by controlling precisely the speed of the overfeed motor, which results in a superior yarn package. Product Parameters

Type of tension	gate tension
Take-up tubes	cylindrical
Package shape	straight edge or tapered edge shape (The taper angle can be adjusted)
Rated power	580W/Spindle
Traverse length	130mm~250mm (It can be changed according to the actual situation)
Take-up package diameter	Up to 270mm

Spindle gauge: 485mm;
Type of winding: Digital winding or precision winding;
Linear speed: up to 1100m/min ( depend on the process parameters );
Machine structure: Single side, single layer, 4 spindles per section, 40 spindles/set;
It is designed as the same winding technology as European Brands but was developed and programmed by ourselves. The functions of our machines are identical with European Brands and our technology ensures well controlled winding. And some of our spare parts is compatible to European Brands, such as guiding motor, sensor and angle transducer.
After Sales Service
For demo machine set:
4 spindles/set+ Independent Machine headstock
Wooden case packing;
*provide the spare parts;
*Gurantee: one year;
*Provide remote installation or door-to-door installation service;
*Provide after sales service;
*Welcome to visit our factory; Certifications
ISO9001; ISO14001; ISO45001; CE;
Company Profile
Zhejiang Kaicheng lntelligent Machinery Co., Ltd. is a national high-tech enterprise dedicated to manufacturing intelligent winders and twisters, and also researching, developing automation control software for high-end textile machinery. Kaicheng insists on technological innovation as its core competitiveness of the enterprise. We focus on researches in the field of twisting and winding technology, and keep up with international level especially some famous brands from Europe. We are the best choice and replacement for European brands. Kaicheng products are being sold not only in China but are exported to Southeast Asia, West Asia and North-America, Central and South America, as well as Europe. Kaicheng has set up full set of advanced processing equipment and technology research centers to take its research activities. Moreover, Kaicheng has established long-term cooperation relations with Donghua University, Wuhan Textile University and other universities; "Modern Textile Machinery Research Institute" and "Postgraduate Training Base" was co-established by Zhejiang Kaicheng Intelligent Machinery Co., Ltd.& Zhejiang Sci-tech University in year of 2020.
