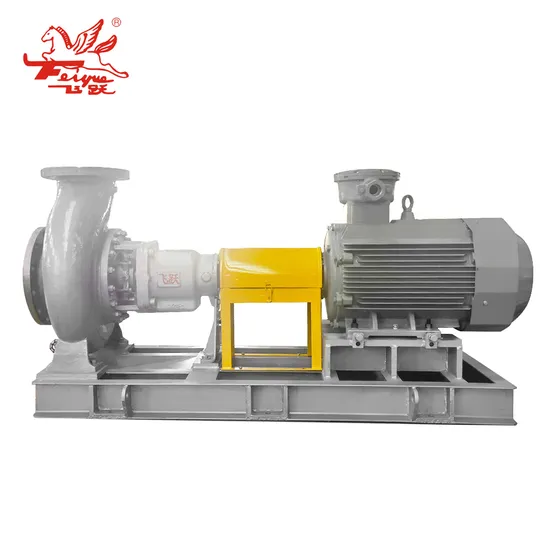

Fso Industry Chemical Prosess Centrifugal Pump for General Industrial Process

Product Description

FSO Chemical Process Industry Pump For Seawater Desalting Plant
Product DescriptionConform to design standard of API610
Flow range: ~2000m2/h
Lift range: ~200m
Design pressure: 2.5MPa at most
Application temperature: -40~180ºC
Application field: transport all kinds of clean media, particle contained high-temperature or low temperature inflammable, explosive, poisonous, neutral or strong corrosive media. Mainly used in industries and fields of oil refinery,petrochemical engineering,low-temperature engineering, coal chemical industry,chemical fiber and general industrial process, power plant, large and medium sized heating and air conditioning equipment, environmental protection engineering, marine industry and seawater desalting plant etc.
Summary
FSO series pump is designed and manufactured in accordance with API610, featuring; Safe and reliable structure, stable operation.
Unparalleled cavitation performance. due to small NPSHr, economizing investment on device.
Wide performance range, close interval of flow capacity and delivery lift, convenient type selection.
There's three cooling methods of bearing, air cooling, fan cooling and water cooling, selected as different service
temperature.
Applicable range
This series of product is applicable to convey clean or particle-contained liquid, neutral or corrosive media at low or high temperature,
mainly used in the fields of petroleum processing, petrochemical, papermaking, coal processing, food, pharmacy. environmental protection.
Parameter range
Flow capacityQ:~2000m2/h
Delivery lift H:4~200m
Working pressure: ~2.5MPa
Working temperature: -40~180ºC
Meaning of model code
250-Nominal diameter of impeller(mm)
50-Outlet diameter of pump(mm)
FSO-Series codChart

1	Pump body	2	Pump Cover	3	Impeller	4	Pump Shaft	5	Impeller Nut	6	Machine seal
7	Shaft Sleeve	8	Seal Gland	9	Seal Ring (Pump Body)	10	Seal Ring (Pump Cover)	11	Bracket	12	Bearing Box
13	Support Arm	14	Oil Mouth	15	Bearing Gland	16	Bearing

Product ParametersPerformance parameters of the table
