3 in 1 multi-functional water flow sensor combines water flow, water temperature and TDS with 1/4'' or 3/8''
Product Description
Product Description3 in 1 multi-functional water flow sensor combines water flow, water temperature and TDS with 1/4'' or 3/8''
Product description

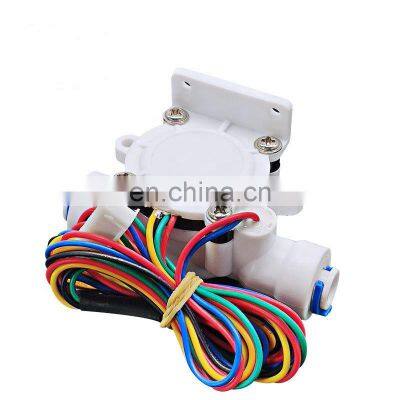

this is Hall flow type water flow sensor, to detect the water flow, water quality and water temperature. Can use it in water dispenser, coffee machine, etc. Both connection ports are 1/4'' or 3/8'', quick fitting types. This one have 3 functions---water flow, TDS and water temperature monitor.
water flow sensor
Specification
| Water pressure resistant | 0.35MPa | Operating voltage range | DC5 to 24V |
| Insulation resistance | >100MΩ | Accuracy | 0.3 to 10L/min |
| Flow pulse characteristics | f=(15*Q-2)±2% Q=L/MIN | Output Pulse High Level | >DC 4.7V(Input Voltage DC 5V) |
| Customization | available | Output pulse space ratio | 50%±10% |
Features
1, the appearance of this product is light, small size, easy to install.
2, high accurancy
Package
Normally put all of them inthe carton
