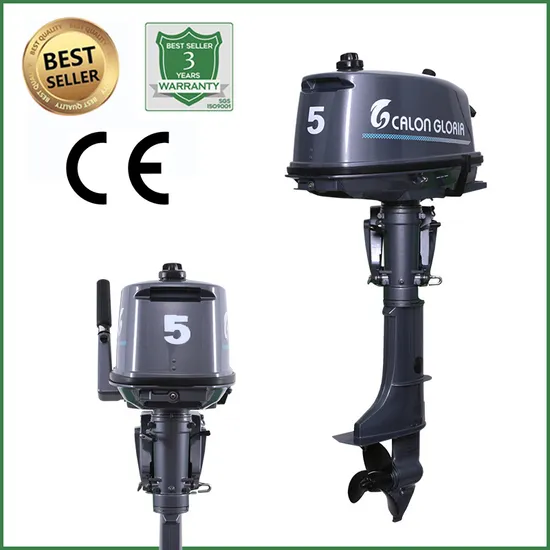

5HP Portable Outboard Motor 2 Stroke 103cc Outboard Motor

Product Description

Product Details

Model	T5	Displacement	103.0cc
Type	2 Stroke	Engine lubrication system	Premixed Fuel
Maximum output	5hp (3.7kw)	Cooling system	Water/Thermostatic Control
Dimensions	677*322*978mm	Starting system	Manual Start
Weight	20.5KG	Ignition	CDI
Maximum operating range	4500-5500 rpm	Fuel tank capacity	12L
Number of cylinder	2	Speed control	Twist grip type
Bore x Stroke	54.0 x 45.0		27 : 13

Features > Overspeed protection
If the machine is running, the engine speed exceeds the specified speed value, the machine speed limit protection device will automatically
limit the speed, to prevent engine overheating caused by engine damage
> Low oil pressure warning
When the oil pressure drops below the specified pressure, the engine speed drops automatically
> Overheating protection
If the inlet is blocked, the machine is hot. The cylinder head is equipped with a temperature-controlled sensor. If the temperature is too high,
the automatic speed limit will not work properly and the machine will not be damaged.
> Carburetor improvement
Anti corrosion for carburetor, and improvement on the idle jet to main jet, engines will be more stable.
>5 layers paint
5 layers paint for anti corrosion, with electrophoretic coating ensuring the best protection.
> Anti-noise system
New improvement on the anti-noise system for exhaust control, it's a quiet engine
> New design for exhaust system
More preciously temperature control with the new design on exhaust radiator.
> Upgraded oil piper
Anti-aging upgraded oil piper, pressure test over 0/4kg,tensile strength over 8MPA and the elongation at break is over 200%
> Automatic positioning system
Automatic positioning system tilt through the elastic locker, much easier for operation
> Hour metering
New added the hour metering, ensure the right time for maintenance.
ALL THE MOTOR PARTS ARE AVAILABLE FOR SALE!
OTHER PRODUCTS
Real Shot
Our Company
Canglong Power Machinery Co., Ltd., branded Calon Gloria, is a high tech company specializing in development
and manufacture of professional outboard motors. Established in 2016, Currently, we have a factory that covers
around 10000 square meters with a production capacity of 30,000 units per year. Presently, we have 2 stroke
models from 3hp to 40 hp. In the short run, motors with higher powers, will be available, as well as the 4 stroke
models, because we have a powerful r&d team with more than 18 years experience. At the same time, we choose
high quality suppliers for the spare parts. Together with a competitive price, we are expected to be among the top
manufacturers of outboard motors in China soon. Being a business partner with us will bring you more profits and
less after-sale troubles.
CUSTOMER SHOW
.
CERTIFICATES
Warranty
1 year for commercial usage;
2 years for recreation use;
1% free spare parts for container order
Our Service 1. OEM Manufacturing welcome: Product, Package...
2. We will reply you for your inquiry in 24 hours.
3. After sending, we will track the products for you once every two days, until you get the products. When you got
the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we
will offer the solve way for you.
We have a mature after-sale service team which can provide technical support! We sell all the motor parts in order to assure our motors a long time!
FAQ Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral foam boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: We accept T/T, WESTERN UNION, PAYPAL, MONEY GRAM, L/C, etc..
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, etc.
Q4. How about your delivery time?
A: Generally, it will take 7-21 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
