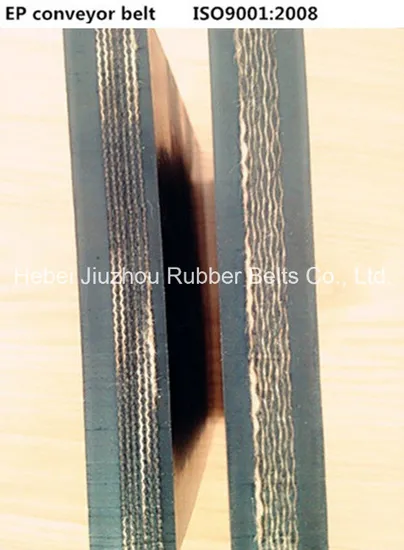

Polyester Ep600/4 Conveyor Belt

Product Description

Specification:
1) Fabric code: EP100, EP150, EP200, EP50, EP300, EP400
2) No.s of ply: 1~10
3) Width: 300~2000mm
4) Thickness: 6~30mm
5) Delivery time: 20~30 day for general orders
Classify by coumpounds:
General type, Oil resistant, Acid/alkali conveyor belt, Cold-resistant, Anti-static electricity, etc.
Characteristics:
1. Belt body light and thin,
2. High tensile strength,
3. Moisture resistant,
4. Fatigue resistant,
5. Impact resistant,
6. Excellent trough ability,
7. Low elongation,
8. Good thermal stability etc.
Advantage:
1. Thin belt body with high strength, light weight.
2. Anti-abrasive, impact resistant, corrosion resistant
3. Softy belt body, good flexibility, excellent trough.
4. Vulcanization molding
5. Long service life
Application:
Coal mining, metallurgy, harbor (port), power, chemical, Foundries, Iron and steel,
Construction, Cement, Fertilizer, Copper, Pig Iron Ores, Sponge Iron Reserves etc.
Standards offered
GB/T9784, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc.
Why choose us?
1. High level of choosing upstream supplier: like carcass, Wuxi Taiji being our strategic partner supplying qualified fabric.
All raw materials purchase is accompanied with quality test certificate.
2. Strict QC system over the whole process of production: raw materials - semi-finished product - finished product
Every one step of semi-finished product shall be tested before next step of processing. Unqualified pieces are now allowed for next step of processing.
3. All finished products shall get tested, and onlt qualified products can leave factory.

Fabric specs	Ply thickness (mm/p)	Strength series (N/mm)									Cover thickness(mm)		Width (mm)
		2ply	3ply	4 ply	5 ply	6 ply	7 ply	8 ply	9 ply	10 ply	Top	Bottom
EP100	0.8	200	300	400	500	600	700	800	900	1000	3.0-8.0	1.5-4.5	200-2000
EP150	0.9	300	450	600	750	900	1050	1200	1350	1500	3.0-8.0	1.5-4.5	200-2000
EP200	1.0	400	600	800	1000	1200	1400	1600	1800	2000	3.0-8.0	1.5-4.5	200-2000
EP250	1.2	500	750	1000	1250	1500	1750	2000	2250	2500	3.0-8.0	1.5-4.5	200-2000
EP300	1.4	600	900	1200	1500	1800	2100	2400	2700	3000	3.0-8.0	1.5-4.5	200-2000
