Aluminum Iron Mould Die Engraving Machine 3D Mini CNC Router 4040 for Making Shoe Mold

Aluminum Iron Mould Die Engraving Machine 3D Mini CNC Router 4040 for Making Shoe Mold

US$4,900.00-8,000.00 1 set (MOQ)

Basic Info.

Model NO.
FM4040
Type
Meter Milling Machine
Object
Tool
Structure
Gantry
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Spindle Power
3.0kw / 5.5kw / 7.5kw
Inverter
Fuling / Delta Brand
Motor and Drive
Servo Motor and Drivers
Transmission
Taiwan Tbi Ball Screw
Guide Rails
Taiwan Hiwin Square Rails
Control System
Original Ncstudio / Tk100 / Nk280 / Syntec
Software
Artcam
Working Speed
8-15m /Min
Machine Bed
The Whole Cast Iron Bed, Heavy-Duty
Transport Package
Standard Wood Box
Specification
400*400*200mm
Trademark
FIRMCNC
Origin
Jinan Shandong China
HS Code
8465990000
Production Capacity
100 Sets/Month

Product Description

Aluminum Iron Mould Die Engraving Machine 3D Mini CNC Router 4040 for Making Shoe Mold Product Description
FIRMCNC Brand mould cnc milling engraving machine mainly used for all kinds of metal materials, such as aluminum, copper, stainless steel, carbon steel, fiber glass etc.

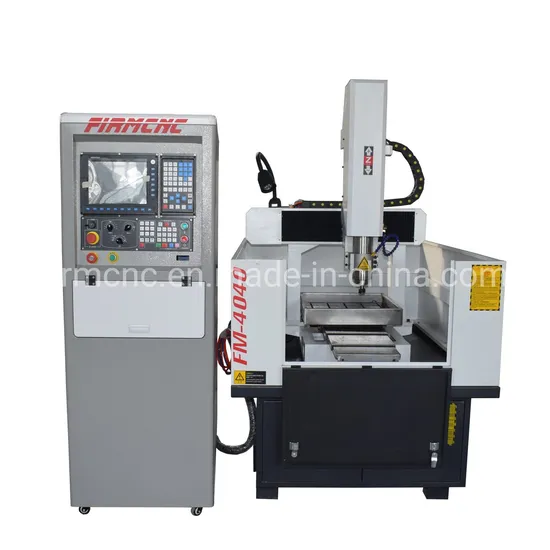

This is new design Semi-cover FM4040 mould cnc machine with NK300 control system, servo motor, fast speed and high precision.
the standard model have FM4040 , FM6060,FM6080, FM6090, machine can be customized.
Mould cnc milling machine features:
# Whole machine cast by iron, very strong, table moving, high precision.
# Imported Hiwin square rails and TBI ball screw for 3 axis.
# Working area 400*400*200mm, Z axis zone can according your need make it.
# High Quality servo motor and drivers,leadshine hybrid servo motor for option.
# Syntec controller, TK100 controller, DSP control system and NC Studio for option.
# Machine with lubrication system, spindle cover, Japan OMRON limit switch and Schneider electrical components.
Product Parameters
Standard Configuration
Model & Name FM4040
Brand FIRMCNC
Working Area 400*400*200mm
Control system Intelligent integration NK300 control system
Spindle 3.0KW water cooling spindle
Motor and drivers Servo motor and drivers
Rail guide Taiwan HIWIN square rails
Ball Screw Taiwan TBI grinding ball screw
Inverter Taiwan Delta inverter
Electronic components France Schneider electronic components
Software Artcam software
Limit switch Japan Omron limit switch
Working Dictate G-code
Water cooling system Included
Technical Parameter
Working area 400*400*200mm
Spindle power 3.0KW water cooling spindle
Rotary axis diameter 200mm
Spindle speed 24000RPM
Working Accuracy (mm) ≤0.01mm
X,Y,Z Traveling Positioning Accuracy (mm) ≤0.01mm
Max. Idling Speed 60m/min
Max. Working speed 40m/min
Commend Code G Code
Diameter of Cutter φ3.175-φ12.7
Cooling Mode Water-cooling
Working voltage 380V 3P 50HZ

Main configuration of cnc milling machine
Samples of mould cnc milling machine
# It is suitable for engraving,milling and drilling compactly all sorts of materials
such as steel,copper,aluminum and plastics.
# Widely apply to automotive,injection mould,ironware mould and engrave mould industries.
# Especially designed for engraving and milling molds,eyeglasses, watch,panel,badge,brand,
graphics and words of three-dimensional and outside surface's sleeking of large size.
Company Profile
Jinan FIRMCNC Equipment Co.,Ltd is situated in Jinan city, Shandong province, we have devoted to cnc router industry more than 18 years,with strong technical strength and perfect service network in industrial,it provides one-stop solution of cnc wood router processing equipments,services and customized application for different requirements.our machines obtained humanity design,advanced technology, rich cnc router solutions,better users experience and European standard etc.
Our products including cnc router, mould cnc milling machine, wood lathe, wood cutting machine, cnc lathe, fiber laser cutting machine, co2 laser machine, laser marking marking machine, plasma cutting machine, edge banding machine, sliding saw table etc.
Besides, we have 10 modern production and processing workshops, our 2 R&D teams,2 after-sale service teams.our machine are most popular among multi industries, and clients covering almost all the Countries who doing importing and exporting business.
After sale service of plasma cutting machine
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges
Packing and shiping1.Outside package: Standard marine export plywood case.2.Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.3.Improved package, much more strong and environmental protection.4.We can also make package according to your requests.Delivery Detail: Shipped in 10-15 working days after payment.
FAQ
Q1.How can i get the machine? CIF:Almost finish production →order shipment and confirm shipping date→delivery machine to port of loading→declare at customs→shipping→delivery to port of destinationFOB:Almost Finish production→tell us your shipping agent contacts and confirm shipping date→delivery machine to port of loading→declare at customs→shipping→delivery to port of destinationQ2.Why choose us?We provide you a solution and not just a machine.Well configured machine using hardware that makes the machine efficient, accurate, and reliable.Feel Confident when buy from a CNC company that has expert staffs with over 10 years of CNC building experience.Get the support that you deserve from our confident well trained staff members. we prides itself in having the patience and the ability to provide knowledge and service.Q3. How to choose the most suitable machine?Kindly let us know the following details:1.What is your Max.working area?2.What material will you work on?3.Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?4.You also can send your product samples to us.According to your sample,we will recommend the best suitable machine for you
