Testing Machine for Power Steering Pump

Product Description

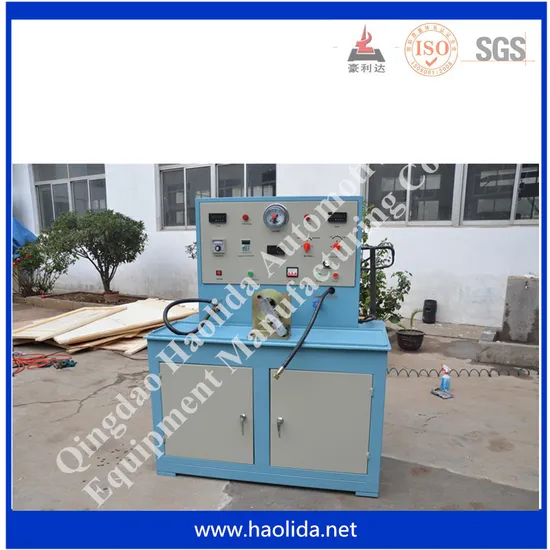

QFY-2 model Testing Equipment for Power Steering Pump

General introduction
This power steering pump test bench is used for testing and repairing hydraulic steering pumps of various trucks in steering system. Regulating speed by frequency converter to drive the pump work. Adopting high precision press regulating valve and sensor, it possesses convenient operation and reliable data.

Advantages:
1. It uses variable frequency speed regulation to drive the pump work.
2. It displays result by pointer instruments.
3. It adopts high-precision pressure regulator valve and sensor.
4. It is with indicator lamp following each step and warn you the problems.
5. It is easy to learn and operate.

Test items:
pressure of the power pump, can preinstall the rated pressure and disassembling automatically
the flow of the power pump
the rotating speed of the power pump

Technical parameter:

Model no	QFY-2
Language	English, etc
Material	Metal plate
Painting	Powder painting, durable and beautiful
Color	Blue
Voltage	380V 50Hz
Motor power of power steering pump	7.5KW
Frequency converter power	7.5KW
Speed	0-2400rpm(frequency regulation)
Direction	Clockwise, anti-clockwise
Working pressure range of power pump	0-18Mpa
Accessories:
Accessory wires , etc.
Others you may want to know:
MOQ	1set
Warranty period	12 months
Payment term	T/T 50% in advance, the balance should be paid before delivery (negotiable)
Delivery time	30 days after receiving downpayment
HS code	90312000.90
Packing sizes	1140x860x1630mm=1.6CBM N.W:250kgs G.W:295kgs

Why Choose us:
1. 32 years' design,development and produce experience
2. Professional R&D team
3. Strict QC
4. A good pre-sale and after-sale service
5. Can design and make according to customer's requests
