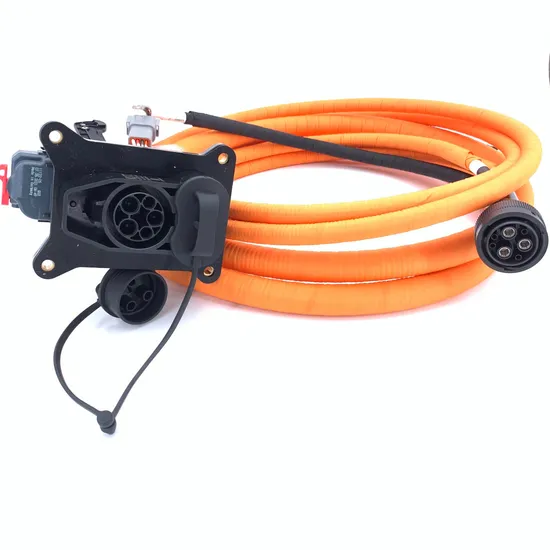

Custom Design of New Energy Vehicle Wiring Harness Cable Assembly with Phoenix Te Amphenol Deutsch Connectors EV Cable 50mm2 70mm2 90mm2 150 ° C 1000V

Product Description

Product Parameters

Model NO.	HV wiring harness	application	New energy automobile, new energy logistics vehicles, etc.
Core material	Pure copper	Connector	PL182X-301-70/HDP26-24-7SN-C038/323173/KST
Insulation material	XLPE	working temperature	-40ºC~125ºC
Cable Type	EV 70mm2 with shielding	Rated voltage	900V 300A
Cable length	1.7M(According to the requirements of customers.)	Quality Control	100% Inspection Before Shipment

Additional information

Trademark	Ranxuan	Transport Package	50PCS per bag with label,export standard carton.
Delivery time	About 1-2 weeks	Origin	Shenzhen, China
HS Code	8473409001	throughput	500000 PCS /M

Packaging & Delivery

Company Profile Shenzhen Ranxuan Electronics Co., Ltd., founded in 2017, is a company specializing in the manufacturing of automobile wire harnesses. The main products of the company include traditional automobile harness and high-voltage harness for new energy vehicles. The company has a professional technical team and perfect production equipment, which can provide customized solutions for customers, while ensuring the quality and reliability of products
Ranxuan Auto Wire Harness Co., Ltd. is made of high-quality materials and advanced technology, with the advantages of high quality, customization, all-round service and competitive price.
Introduction to high-voltage wire harness of new energy vehicles: high-voltage wire harness of new energy vehicles is an important component that connects battery pack and motor, and its main function is to transmit high-voltage current. As the working voltage of the motor of the new energy vehicle is up to hundreds of volts, it is necessary to use high-voltage wire harness to ensure the safe transmission of current. The high-voltage wire harness of new energy vehicles of Ranxuan Automobile Wire Harness Company is made of high-quality materials, which has the characteristics of high strength, high pressure resistance, high heat resistance, etc., and can meet the use requirements in various complex environments.
Product advantages:
High quality: Ranxuan Automobile Wire Harness Co., Ltd. uses high-quality materials and advanced technology to manufacture high-voltage wire harnesses for new energy vehicles to ensure product quality and reliability.
Customization: The company can provide customized solutions according to the needs of customers to meet the needs of different customers.
Full service: The company has a complete pre-sale, sales and after-sales service system, which can provide customers with full service support.
Competitive price: The company adopts cost management and efficiency improvement to ensure that the product price is competitive.
Products can be customized for various certification

Packaging & Shipping
1.100-500 pcs per carton.
2.Built-in waterproof plastic bag.
3.Normal Carton size is 45*30*25CM
4.Carton material is K=K(Standard Export Carton)
5.Port:Shenzhen

Our Services 1. We offer OEM and ODM service to our customer.2. We also provide customized size for our customer.Complete with CAD drawing draft and interrelated technical parameters, and quality requirements.3. We can provide quality product materials that are not easily damaged.
Order and Mass Production: 1) We will send PROFORMA INVOICE to you when the order is confirmed.
2) We will start to have mass production when confirming our sample and 30% T/T deposit received.
3)Customers need to confirm before formal production, we will actively cooperate.
4)Production and processing in strict accordance with customer requirements (customers can provide samples or drawings).
5)If the products need to be packed, we can provide our factory's packaging, we can also pack according to the requirements of customers.
6)We can produce according to some special needs of customers, such as tail processing; labeling; or customers provide materials for us to process injection molding, etc.
7) Quality is under strict manage and supervision during every production.

About the price:
due to different product characteristics (wire length, number of cores), the actual price is also different, our company provides a formal quotation.

About samples:
we can provide samples for free if we have stock, and charge sample fee for special samples according to the actual situation (the sample fee can be.
returned when it reaches the corresponding payment amount).
About payment for goods:1) T/T /Western Union/acceptable;
2) 30% deposit and 70% before shipping all goods out is acceptable for big order;
FAQ

1 What we do ?

We provide a non-stop service on cables which including Cable Desgining ,Drawing ,Prototyping ,Sampling and Manufacturing etc .

2 When can I get the quotation ?

We will quote you within 24 hours after we received your inquiry .If this is an urgent matter ,let us know and we will regard it as priority .

3 How can I get sample ?

Kindly let us know your sample requirements and we will arrange samples for your testing .Sample cost will be charged if necessary and will revert to your official order .

4 When can I except to receive sample ?

Our time frame for sample is around 2-7 days ,depends on your cable specification .

5 If I need customized cable ,how will it work ?

Please send us the drawing if you have ,or talk to our engineer and they will help out .

6 What is the warranty ?

All products from Ranxuan is granteed for one year

7 In an unlikely event you get the faulty products , what is the solution ?

Contact us for the details and we will arrange a second shipment for free replacement after we figured out problems .

If you are interested in our products,
please feel free to contact us at any time~
