US$42,000.00-45,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Suitable for
Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Name
Hydraulic CNC Tandem Press Brake
Main Motor
Siemens From Germany Brand
Tubing Connector
Emb Form Germany Brand
Hydraulic System
Bosch-Rexroth Form Germany
Electrical Components
Schneider Electrical From French
Servo Motor/ Servo Drive
Yaskawa From Japan Brand
Automatic Level
Fully Automatic
Transport Package
Wooden Cases for CNC Press Brake
Production Capacity
30set/Month
Product Description

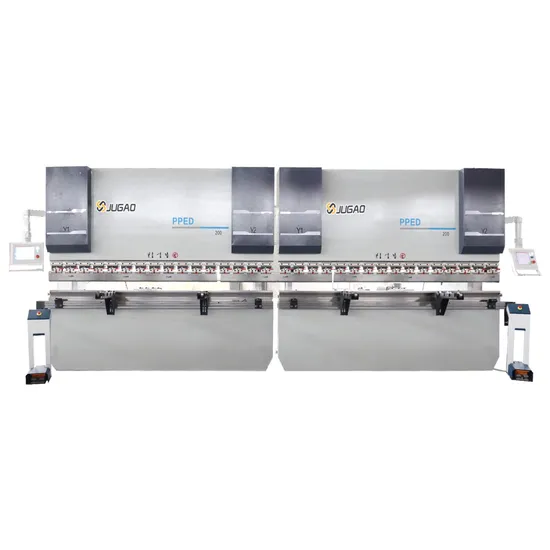

Making Street High Mast Light Pole Large Production Line Tandem Press Brake
Two WC67Y/K Series in same specification are choosen as main machine with double motor linkage synchro-device, which may work together to process overlong workpiece or operate separately to increase production efficiency. Defection copensation device is fitted, too. Mechanic and fluid servos with mechanic slider are utilized in synchronous device. The stroke of upper slider and the position of rear apron are regulated quickly by machine and micro-regulated by hand with electronic NC display.
Performance
Tandem Series press brakes allow for the combination of two ERMAK heavy duty press brakes in a synchronised tandem. Typical industries served include earth moving,lighting columns,cranes,aerospace,transport and defence. New intuitive and intelligent Touch PC based control ensures reduces `Art to Part' time and optimises bending results. Multiple operating modes ensure fastest'Art to Part'times. When used in tandem mode both machines are controlled via one Touch control. Each machine in the tandem can also be used independently increasing flexibility. ERMAK heavy duty tooling is available to suit your individual application. Machine has many configurable options at point of order:open height,stroke,throat gap and back gauge. Additional options are available such as:automatic tool changing ,variable vee dies and automated material handling. Technical parameter
Model | Preesure (KN)
| Max bending width (mm) | Distance between cylinder | Throat depth | Ram stock | Max open height | Motor (kw)
| Max bending thickness X Length (mm) |
2WC67Y-300TX6000 | 6000 | 12000 | 5130 | 710 | 200 | 950 | 2X37 | 12X12000 |
2WC67Y-400TX6000 | 8000 | 12000 | 5140 | 710 | 250 | 950 | 2X37 | 17X12000 |
2WC67Y-500TX6000 | 10000 | 12000 | 5150 | 900 | 300 | 1100 | 2X45 | 19X12000 |
2WC67Y-600TX6000 | 12800 | 12000 | 4000 | 1100 | 300 | 1200 | 2X55 | 20X12000 |
2WC67Y-800TX6000 | 16000 | 12000 | 4000 | 1100 | 400 | 1200 | 4X37 | 23X12000 |
2WC67Y-800TX7000 | 16000 | 14000 | 5030 | 1100 | 400 | 1200 | 4X37 | 22X14000 |
2WC67Y-800TX8000 | 16000 | 16000 | 5030 | 1100 | 400 | 1200 | 4X37 | 20X16000 |
2WC67Y-1200TX7000 | 24000 | 14000 | 4500 | 1600 | 400 | 1250 | 4X45 | 28X14000 |
2WC67Y-1200TX7500 | 24000 | 15000 | 5000 | 1600 | 400 | 1250 | 4X45 | 27X15000 |
2WC67Y-1200TX8000 | 24000 | 16000 | 5030 | 1600 | 400 | 1250 | 4X45 | 26X16000 |
2WC67Y-1600TX8000 | 32000 | 16000 | 5210 | 1600 | 400 | 1250 | 4X55 | 29X16000 |
2WC67Y-2000TX8000 | 40000 | 16000 | 5210 | 1600 | 400 | 1250 | 4X55 | 32X16000 |
2WC67Y-2400TX8500 | 48000 | 17000 | 6000 | 1600 | 400 | 1250 | 4X75 | 35X17000
|
