Access Sports Facilities Self-Design Appearance Rotary Barriers Board Full Height Turnstiles Door

Product Description

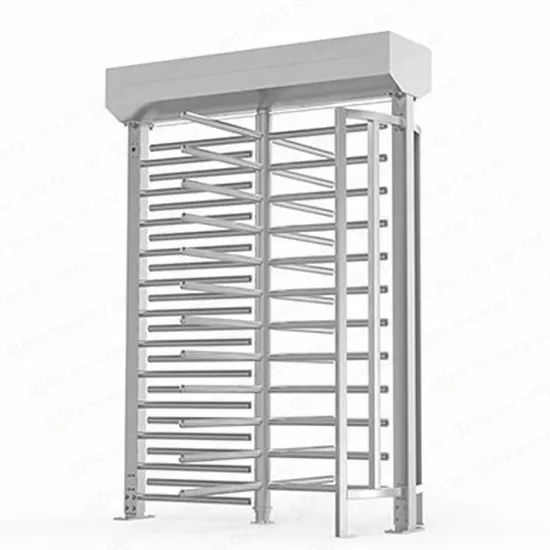

Access Sports Facilities Self-Design Appearance Rotary Barriers Board Full Height Turnstiles DoorProduct Description Full Height Turnstile RS 999-1A is pedestrian access control the upgrading product ofFull Height Gates RS 999-1A is divided into three types: 90 degrees,120 degress,180 degrees.Full Height Gates full body is made of 2.0-3.0mm thickness 304 stainless steel.Full Body Barrier RS 999-1A is cosist of electric circuit,hydraulic damper,electromagnetic,mechanism,led lamp,arms etc.Waist Height Turnstile with standard fire interface,arm can be firee rotation by force for evacuation evation even power is not cut off when fire alarm triggered.Full Height Turnstile RS 999-1A anti-passback,with hydraulic damper,low impact sound and high durability.Full Height Doors is widely used in Office Building,Fitness,Hospital,School,Stadium,Metro Station etc.Full Height Turnstile is safe, durable and easy to install.
Product Parameters

Product Name	Full Height Turnstile
Moduel No.	RS 999-1A
Brand	Bloccante
Size	1450*1350*2200( length*width* height)
Material	304 stainless steel, 38mm diameter tube, 1.5mm thickness
Unlocking time	1s
Traffic speed	≤30 persons/min
Channel width	≤600mm
Input voltage	220V, 50HZ
Drive voltage	24V
Ambient temperature	: -20~+70
Power	30W
Opening signal input	dry contact
Opening method	push button, face recognition, RFID card reader, finger print

Function1. Compatible with several control devices IC, ID, mag card, bar code
2. Unlocking is quick and reliable.
3. Several working modes are optional, namely two-direction card reading for limiting flow capacities, or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to pass.
4. Automatically reset function: It will automatically lock if the pedestrian hasn't passed through the channel in the pre-set
time after the opening. The passing time is adjustable.
5. The center rotor will be set free (default) or locked (optional) automatically when the power is off.
6. Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be remote-controlled whether the power is on or off.
7. Counting Function of the controller, LED figure display function (optional)
8. Memory Function attached in the controller
9. With standard input, output interfaceFeature
1. Count, alarm function, face recognition, fingerprint, qr code, LED screen display, touch screen, etc
2. The common height and width can be customized according to the occasion requirements to meet different customers' requirements for security and appearance
3. The chassis material is mainly 304 and A3 steel, other materials can also be customized
4. It can connect with remote control switch, access control system, consumption system, attendance system, electronic ticket system, biometric identification system, electrostatic tester, two-dimensional code authorization of residential visitors and residents and other devices and functions
Detailed Photos
Application
