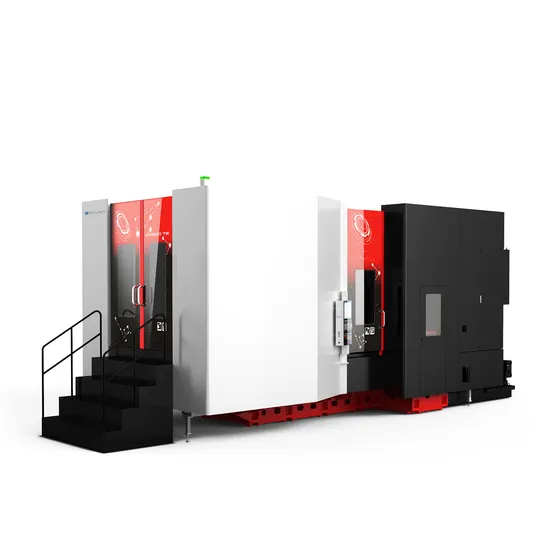

Siemens/Fanuc Control System High Precision 5-Axis Simultaneous Horizontal CNC Machine Center Cp1100t2 Milling Machining Center

Product Description

Product Description
High-speed, high-performance precision horizontal five-axis machining center CP Series features high rigidity, high precision and high efficiency machining. The one-piece base is adopted, and the positive T structure design of the base's high and low rails ensures the high rigidity of the machine tool; the whole machine passes the finite element analysis to ensure that the machine tool does not vibrate under high-speed motion, and ensures the best long-term operation stability of the whole machine.
By adopting high-end technologies such as high-speed spindle technology, high-speed feed technology, high-speed tool change technology, and high-speed CNC system technology, the processing time is greatly shortened, the processing efficiency is improved, and various production needs are met. The three-axis rapid feed is 60 M/min, and the high-speed and high-torque electric spindle reduces the acceleration and deceleration time of the spindle. These indicators greatly shorten the non-processing time and improve the processing efficiency; the screw/bearing seat/spindle/DD swing head adopts a temperature control system , to ensure the excellent thermal balance of the equipment, and greatly improve the accuracy and stability of the equipment.
Adopting Siemens ONE system, 19-inch super large LCD display, dynamic graphic display of tool trajectory, intelligent warning display, self-diagnosis and other functions make the use and maintenance of the machine tool more convenient and fast; the high-speed bus communication method greatly improves the data processing of the CNC system The ability and control performance facilitate the fast and efficient transmission and online processing of large-capacity programs
Product Parameters

Item		Unit	CP1100T2
Travel	X/Y/Z axis travel	mm	980x1140x500
	B-axis travel		-30°-180'
	C-axis travel		360°
	Distance from spindle to worktable (B-axis 90 degree horizontal type)	mm	100-600
	Distance from spindle to worktable (B-axis 0 degree vertical)	mm	0-500
	Distance from spindle to center of worktable (B-axis 90 degree horizontal type)	mm	-260-720
	Distance from spindle to center of worktable (B axis 0 degree vertical)	mm	-160-820
	Max. processing range	mm	φ1120*600
Three-axis feed	X/Y/Z axis rapid	m/min	60/60/60
	Cutting feed rate	mm/min	0-24000
Rotary table (C axis)	Number of worktables		2
	Diameter	mm	630*630
	Allowable load	kg	1000
	Max. rotation speed	rmp	30
	Positioning/repetition accuracy	arc.sec	15/10
B axis	Max. rotation speed	rmp	50
	Positioning/repetition accuracy	arc.sec	8/4
Spindle	Spindle specifications (installation diameter/transmission mode)	mm	230/built-in
	Spindle taper hole	mm	A100
	Spindle Max. speed	r/min	10000
	Spindle motor power (continuous/S640%)	kW	54/65
	Spindle motor torque (continuous/S640%)	N.m	200/230
Turret	Tool magazine capacity		50T
	Tool exchange time (T-T)	S	8
	Max. tool diameter (full tool/empty tool)	mm	120/240
	Max. tool length	Mm	450
	Max. tool weight	kg	15
Guide	X-axis guide rail (size/number of sliders)	mm	55/2
	Y-axis guide rail (size/number of sliders)	mm	55/3
	Z-axis guide rail (size/number of sliders)	mm	55/2
Three-axis transmission	X-axis screw	N	2R50x20
	Y-axis screw	N	2R50x20
	Z-axis screw	N	2R50x20
Three-axis accuracy	Positioning accuracy	mm	0.005/300
	Repeatability	mm	0.003/300
Lubrication system	Lubrication unit capacity	L	0.7
	Lubrication type		Grease lubrication
Others	Air demand	kg/cm²	≥6
	Air flow	mm³/min	≥0.5
	Machine weight	KG	24
	Size	mm	4700*9027*3678
	Machine weight	T	24

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
