Basic Info.
Type
Agitated Transmission Device
Wire Mesh Demister Type
Pinion (Gear Wheel)
Gland Box Seal Type
Pinion (Gear Wheel)
Place of Shipmentjbzz
Dezhou, Shandong, China
Processing Customization
Yes
Installation Method
Fixed
Sales Method
Factory Direct Sales
Land for Sale
Domestic and Foreign
Control Method
Automatic/Manual
Advantages
Even Mixing and Fast Unloading/Low Energy Consumpt
Scope of Application
Industrial Chemicals
Whether to Support Customized Processing
Support Processing Customization
Installation Location
Land
Transport Package
Wooden Box
Origin
Dezhou, Shandong, China
Production Capacity
30, 000 Units
Product Description
A device that forces convection and uniform mixing of liquid and gaseous media. The type, size and speed of the agitator affect the distribution of stirring power between the overall flow and turbulent pulsation. Generally speaking, the power distribution of turbine agitators is beneficial to turbulent pulsation, while that of propeller agitators is beneficial to overall flow. For the same type of agitators, under the condition of the same power consumption, the power of a large-diameter, low-speed agitator is mainly consumed in the overall flow, which is beneficial to macro-mixing. The power of a small-diameter, high-speed agitator is mainly consumed in turbulent pulsation, which is beneficial to micro-mixing. The scale-up of the agitator is a complex issue related to the process. It can only be achieved through step-by-step experience and extrapolated to industrial scale based on the obtained scale-up criteria.
Advantages: 1) Low energy consumption and low operating cost;
2) Small footprint and high degree of automation;
3) Using biological deodorization, no secondary pollution;
4) Anti-corrosion design, long service life;
5) High temperature to eliminate the pathogenic bacteria, parasite eggs, weed seeds, etc.;
6) End product organic fertilizer to realize resource utilization.
Product Description

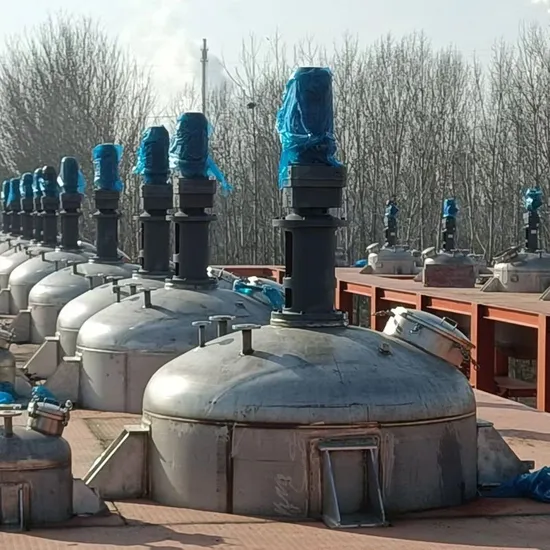

The top agitator, also called the top entry agitator, is installed at the top of the anaerobic tank. By rotating the agitator, the material obtains a suitable flow field, where momentum, heat, and mass are transferred or biochemical reactions are carried out simultaneously.
The mixer is mainly composed of two parts, the transmission mechanism and the blades.
1. Transmission components: The blade is driven to rotate by a vertical explosion-proof motor through a cycloidal pinwheel or gear reducer. Explosion proof motors can avoid the risk of fire caused by ignition; The cycloidal pinwheel reducer drives the machine smoothly, with minimal vibration and noise, thereby improving its service life.
2. Stirring blade: Adopting inclined folding blades to open the turbine blade, it is easy to install and remove, and can stir the medium in the tank over a large range, improving the stirring efficiency.
3. To ensure smooth operation of the equipment, bottom bearings are installed on mixers with excessively long mixing shafts to ensure smooth operation of the agitator.
The top agitator is widely used in the mixing operation of reaction vessels, tanks and tanks in chemical industry, petroleum, papermaking, metallurgy, power desulfurization, pharmacy, food, anaerobic fermentation and many other industries. The structure of the stirrer can be selected according to the characteristics of the stirring medium and the stirring purpose, so as to achieve the best stirring effect.
The side-entry mixer is a mixer that installs the stirring device on the side wall of the equipment barrel. The agitator on the mixer usually adopts an axial flow type, and most of them are propeller agitators. Under the condition of consuming the same power, the highest stirring effect can be obtained. The power consumption is only 1/3 to 2/3 of the top stirring, and the cost is only 1/4 to 1/3 of the top stirring. The speed can be 200 to 750r/min.
It is widely used in desulfurization, denitrification and stirring of various large storage tanks or tanks. In particular, one or more side-entry mixers are used together in large storage tanks or tanks, and good stirring effects can be obtained under low energy The side-entry mixer is a mixer that installs the stirring device on the side wall of the equipment barrel. The agitator on the mixer usually adopts an axial flow type, and most of them are propeller agitators. Under the condition of consuming the same power, the highest stirring effect can be obtained. The power consumption is only 1/3 to 2/3 of the top stirring, and the cost is only 1/4 to 1/3 of the top stirring. The speed can be 200 to 750r/min.
It is widely used in desulfurization, denitrification and stirring of various large storage tanks or tanks. In particular, one or more side-entry mixers are used together in large storage tanks or tanks, and good stirring effects can be obtained under low energy
model | power(KW) | Barrel capacity(L)
| Shaft speed(rpm)
| Shaft diameter(cm)
| Axis length(cm)
| Impeller diameter(cm)
|
s1-09
| 0.37,0.55
| 1000
| 40-136
| Æ18
| 60-100
| 20
|
s1-0
| 0.37,0.55,0.75
| 3000
| 40-136
| Æ18
| 60-100
| 20
|
s1-1
| 0.37,0.55,0.75,1.1,1.5
| 5000
| 10-136
| Æ20
| 60-200
| 25
|
s1-2
| 1.1,1.5,2.2,2,4
| 8000
| 40-136
| Æ20-30
| 60-250
| 35-40
|
s1-3
| 1.5,2.2,3,4,5.5,7.5
| 10000
| 40-136
| Æ30-40
| 100-350
| 30-50
|
Detailed Photos
