Basic Info.
Model NO.
SNTJ-208D CGN208D
Filling Principle
Gravity Filling
Machine Type
Capsule Filling Machine
Main Material
Stainless Steel
Control Mode
Semi-Automatic
Capacity (Capsule/Min)
0 - 25000
Capsule Size
3#, 0#, 00#, 2#, 4#, 1#, 5#
Applicable Industries
Food & Beverage Factory, Manufacturing Plant
Video Outgoing-Inspection
Provided
Vacuum Pump
Evacuating Rate, 40m 3 /H
Packaging Details
Free Fumigation in Wooden Cases
Vacuum Pump Type
Water Ring
Key Selling Points
High Productivity
Finished Dosage Form
Capsule
Computerized
Computerized
Transport Package
Standard Export Wooden Case, Optional Fumigated Wo
Specification
1500*780*1800mm
Production Capacity
50000/Year
Packaging & Delivery
Package Size
150.00cm * 78.00cm * 180.00cm
Package Gross Weight
800.000kg
Product Description
Product Description

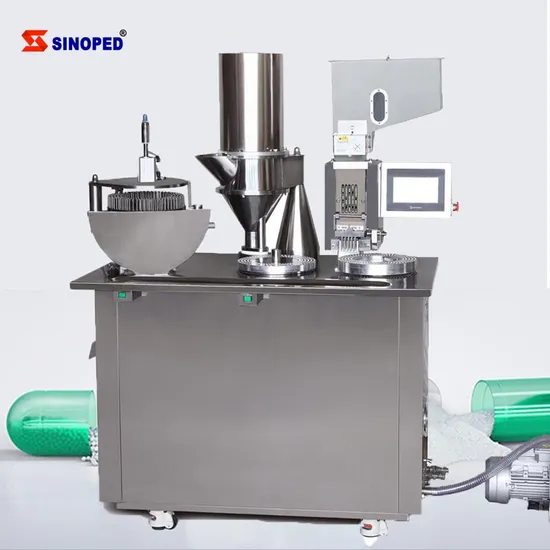

This capsule filling machine combines with electricity and pneumatic power, it is suitable for filling international all size capsule, high output and easy for operating. The whole line equips with auto counting device and adjustable feeding device, can finish position action, separate action, filling action and lock action whole operating process.
It meets GMP standard. Cancel conventional gearbox transmission. The variable frequency stepless speed regulation is adopted to solve the weakness of large deviation of the weight of the head and tail of the traditional machine. Automatic emplacement, separation and shutdown are controlled by photoelectric counting, sensitive and reliable. it is the ideal capsule filling equipment in pharmaceutical industry.
* Click on me for details
Detailed PhotosCapsule tray
The capsule is oriented and the capsule swich is positioned accurately.Filling station
Suitable for powder,granule,pellet filling,high yield.Thimble plate
Both precise,needle-polished,no damage to capsules,high pass rate.
Product Parameters
Model | CGN-208D |
Productivity | 1-25,000 capsules/h |
Applicable capsules | #000/00/0/1/2/3/4/5 |
Filled medicine type | Not adhensive or wet powders, and small granules |
Total power | 4.0KW |
Air pressure | 0.03m 3 /min, 0.7MPa |
Vacuum pump | Evacuating rate, 40m 3 /h |
Dimension(L*W*H) | 1500*780*1800mm |
Weight | 380KG |
Warranty | 1 year |
Packaging Details | Free Fumigation in Wooden Cases |
Material | 304/316L Stainless Steel |
Noise | ≤70dB |
Model | NJP200 | NJP400 | NJP600 | NJP800 | NJP1200 | NJP2300 | NJP3800 |
Capsule size #00-#5 and safety capsule A-E/poeder/granule/pellet/tablet |
200 | 400 | 600 | 800 | 1200 | 2300 | 38000 |
>99% |
3 | 3 | 3 | 4 | 5 | 8 | 11 |
FILLING DOSAGE FORMOUTPUT (capsule / min)CAPSULE QUAIFIED RATEPOWDERCertifications
