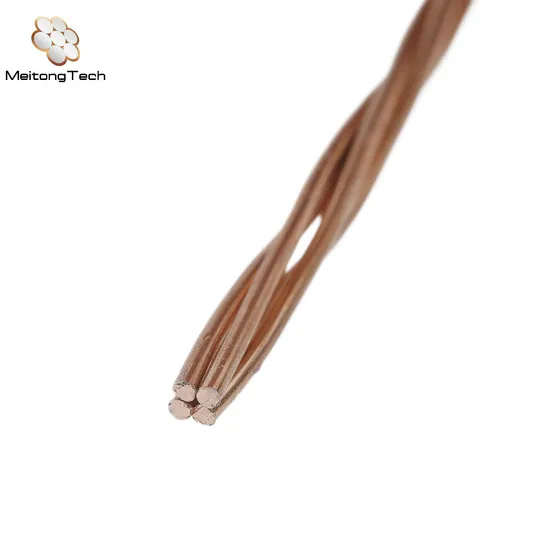

From 15% to 70% Copper Clad Aluminum ABS Spool Electric Wire

From 15% to 70% Copper Clad Aluminum ABS Spool Electric Wire

US$2.00-10.00 500 Meters (MOQ)

Basic Info.

Model NO.
19/0.20-19/1.01
Application
Overhead, Heating, Underground
Conductor Material
Copper Clad Aluminum
Sheath Material
Crosslinking
Material Shape
Round Wire
Range of Application
Cold-Resistant
Certification
ISO9001, CE, RoHS
Brand
Meitong
Material
Copper Clad Aluminum
Wire Diameter
0.20mm
Conductor Model
Stranded
Conductivity
From 15% to 70%
Supply Ability
500000meters Per Month
Transport Package
ABS Spool
Specification
180X0.20MM
Trademark
NA
Origin
China
HS Code
7614900000
Production Capacity
500000

Product Description

Copper Clad Aluminium CCA wire
Application
1.Lan Cable
2.Power Cable
3.Control Cable
4.Conductor for coaxial cables
5.Construction wiring
6.Bus-bar
7.Fuse
8.RF shielded cable
9.Extension-cord
Our Advantages
1.Better price-less expensive than copper,reducing costs of material for cable production.
2.Higher conductivity-electrical conductivity much higher than pure aluminum.
3.Lighter weight-easy to transport and install thus saves labor cost.

Product Description

CCA Wire (AWG)Note: Note:
Technical
Characteristics
Clad type
10H 10A 15H 15A
Size range 0.12mm-8.00mm 0.12mm-8.00mm 0.12mm-8.00mm 0.12mm-8.00mm
Copper content
(by weight)
25%-31% 25%-31% 32%-40% 32%-40%
Resistivity
(max at 20ºC)
0.02743
Ω.mm²/m
0.02743
Ω.mm²/m
0.02676
Ω.mm²/m
0.02676
Ω.mm²/m
Density 3.32g/cm² 3.32g/cm² 3.63g/cm² 3.63g/cm²
Conductivity
(max at 20ºC)
62% 62% 64% 64%
Elongation 1%-3% 8%-25% 1%-3% 8%-25%
Tensile Strength ≥250Mpa ≥110Mpa ≥250Mpa ≥110Mpa
Package Details

NO. DIN130MM DIN185MM DIN250MM DIN400MM DIN800MM
A 130MM 185MM 250MM 400MM 800MM
B 65MM 130MM 160MM 160MM 370MM
C 100MM 160MM 160MM 260MM 490MM
D 120MM 180MM 200MM 290MM 520MM
E 21MM 31MM 31MM 56MM 126MM
Ramk:Can be customized
Certifications

Production Facility

Quality Control Centre

FAQ

Do you accept OEM or ODM?
Of course.We also have a professional design team who can assistant you to design.
What is minimum order quantity?
Usually accept 200 kgs for trial order , it is depended on different items with different materials and sizes.Please kindly contact us for details! Thanks!
What is your sample policy?
1.Paid samples are available as per requirement and specifications.Usually we only charge $50/time,usually within 10kgs.
2.Sample will be sent to you by express with freight collect, so please inform us your courier account number,or you can prepay to us the express cost which we have best channel lower to 70% discount.
What certification do you have?
Our product has passed the ISO certificate.Quality management system,American needed certification,also complete the BSCl audits.And some other needed third party test report and certifications.
What information should I let you know if i want to get a quote?
Please offer the specification of the product if possible.Such as material,Package requests,Electric Conductivity,Resistance,Content list, quantity.etc.Or contact us directly just by a thought. What is the delivery date?
Our products are normally shipped about 25 days after order confirmation. But it may take longer or shorter up to different order quantity.
How can I know order status?
We will acknowledge receipt of your order by e-mail. Some further emails will be sent to you to check about the production details of your goods by specific sales assistant. We will contact you if we have any queries about productions .lf you don't receive any email from us, which means your production goes smoothly and will be shipped as our contract. You can also contact us if you have any question. PP sample photos will send to you before we produce,Bulk sample photo wil send to you before we ship.
