US$67,000.00-100,000.00
|
1 acres
(MOQ)
|
Basic Info.
Type
Cement Production Machinery
Machining Process
Hydraulic
Vibrating Amplitude
Other
Certification
ISO9001: 2000, CE
Vertical Height of Boom
61.1m
Horizontal Length of Boom
61.1m
Turntable Rotation Angle
+-360
Minimum Development Height
16.8m
Theoretical Displacement Low Pressure
180m³/H
Theoretical Displacement High Pressure
125m³/H
Conveying Cylinder Inner Diameter
260mm
Transport Package
Complete Vehicle or Disassembly
Specification
14720*4000*2550mm
Production Capacity
5PC/Month
Product Description

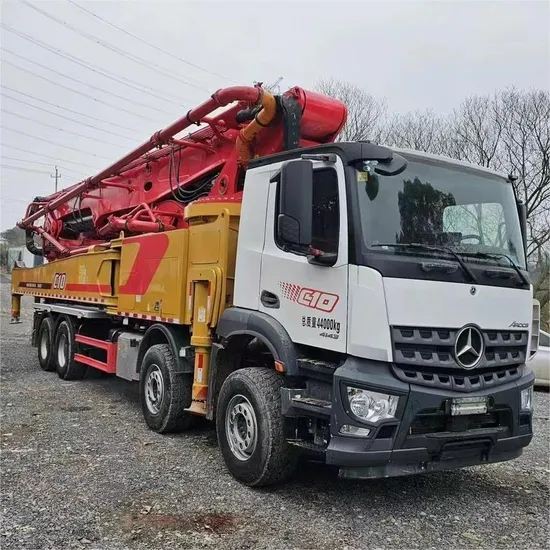

2020 62M Mercedes Benz chassis Second Hand Concrete Pump Truck Product Description:
NO | Name | Parameter |
Vehicle parameters |
1 | Total length | 14720mm |
2 | Overall width | 2550mm |
3 | Total height | 4000mm |
4 | All up weight | 46000kg |
Boom leg parameters |
6 | Vertical height of boom | 61.1m |
7 | Horizontal length of boom | 61.1m |
8 | Vertical depth of boom | 44.5m |
9 | Minimum development height | 16.8m |
Pumping system parameters |
| Concrete theoretical displacement low pressure | 180m³/h |
| Concrete theoretical displacement high pressure | 125m³/h |
| Theoretical pumping pressure low | 8.3Mpa |
| Theoretical pumping pressure High pressure | 13Mpa |
| Conveying cylinder inner diameter: | 260mm |
| Cylinder stroke | 2100mm |
| Hydraulic system | Open type |
| System oil pressure | 32Mpa |
| Tank volume | 900L |
| Tank volume | 700L |
| Conveying pipe diameter | 125mm |
| End hose length | 3m |
| End hose pipe diameter | 125mm |
Chassis parameter |
| Chassis brand: | Mercedes Benz chassis |
| Emission standard | Country VI |
| Fuel tank capacity | 600L |
| Displacement: | 12.94L |
| Maximum speed | 90km/h |
Changsha HuaYi Technology Co., LTD., NOTICE
Dear customer,our company specializes in the offline and online trading of used construction vehicles in China, so the concrete pump trucks displayed on the website may have been sold offline.Our database provides a large number of fresh used concrete pump trucks, used excavator used mixer trucks and other construction vehicles, please contact our sales directly to provide you with more accurate services.Thank you for your patience to browse!
