US$600.00-1,500.00
|
5 Pieces
(MOQ)
|
Basic Info.
Type
Double Cylinder Hydraulic Lift
Certification
CE, ISO, GS
Driving Motor Number of Mechanical Lift
1
Double Cylinder Lift Type
Thin Plate Type
Shearing Lift Type
Big Shear Type
Name
Hydraulic Portable Electric Double Scissor Car Lif
Transport Package
Iron Frame Packag
Specification
2800*555*2866
Production Capacity
50000PCS/1 Year
Packaging & Delivery
Package Size
280.00cm * 60.00cm * 300.00cm
Package Gross Weight
3500.000kg
Product Description

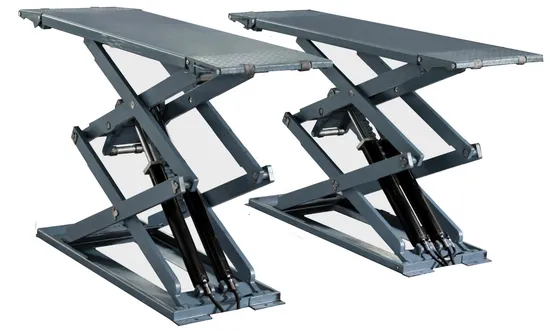

Hydraulic Portable Electric Scissor Car Lift Equipment with Ce
This Car Lift offers the convenience of wide or narrow installation wrapped up into one configurable package. The durable, safe and reliable to suit virtually every vehicle-lifting requirement. It's a simple yet highly sophisticated lift designed to minimize service and maintenance costs while delivering low operating expenses and high productivity.
FEATURES
show on th photos
Restoring Equipment to Service
1) Check the lift and the immediate area around the lift to ensure that nonessential items have been removed
(clear all tools, vehicles and personnel) and that the completion of all lift components are operationally intact.
2) The authorized person can now remove the lock (or dummy circuit breaker or fuse) and tag. Activate the energy
isolating device so that the lift may again be placed into operation.
Details:
Model | Capacity | Moter Performance | Electrical Connection | lifting time | Package size | N.W/G.W |
QJY230B | 3T | 2.2KW | 380/220V | 50SEC | 1#2855*470*720mm2#3200*555*45mm | 650/665KGS |
| | | | | 3#800*280*320mm | |
QJY230B-E | 3T | 2.2KW | 380/220V | 50SEC | 1#2855*470*720mm2#3200*555*45mm | 675/690KGS |
| | | | | 3#800*280*320mm4#590*240*250 | |
QJY240B | 4T | 2.2KW | 380/220V | 50SEC | 1#2855*470*720mm2#3200*555*45mm | 690/705KGS |
| | | | | | |
QJY240B-E | 4T | 2.2KW | 380/220V | 50SEC | 1#2855*470*720mm2#3200*555*45mm | 715/730KGS |
| | | | | 3#800*280*320mm4#590*240*250 |
| |
QJY245DS | 4.5T | 2.2KW | 380/220V | 50SEC | 1#3580*500*880mm2#900*280*320mm | 765/790KGS |
