A1 Magnetic Backlit Slim Light Box LED Light Guide Plate Poster Frame

Product Description

A1 Magnetic Backlit Slim Light Box LED Light Guide Plate Poster Frame
Product name:Magnetic Poster Frame
Features of Magnetic Poster Frame
Product description of Led Advertising Display Menu Board

This magnetic light box uses the super bright LED and edge lit technology to make backlighting light box.
The light box is very low consumption and friendly-environment.

Standard Sizes for reference (custom size is available)

Model	Size	Specification(mm)			Thickness (mm)	Light source	Power (W)	Power supplier	Note
		Outer Size	Graphic size	View Size
JL-D-A	A4	253 x 340	210 x 297	203 x 290	19	LED	3.6W	DC12V	Snap frame
	A3	340 x 463	297 x 420	290 x 413	19	LED	7.2W	DC12V	Snap frame
	A2	463 x 637	420 x 594	423x 587	19	LED	14.4W	DC12V	Snap frame
	A1	637x 884	594 x 841	587 x 834	19	LED	20W	DC12V	Snap frame
	A0	884 x 1232	841 x 1189	834 x 1182	19	LED	28.5W	DC12V	Snap frame

Detailed information:

Item No	JL-D-A
Product name	Custom pizza boxes led light box
Material	aluminum frame, light guide plate,LED lights,etc.
Thickness	Single side :19mm
Frame color	silver ,other colors are available
Size	A4~A0, or custom size is available
Features	aluminum profile,magnetic acrylic cover
LGP	professional silk print technology,applied guide light technology, high brightness, and the light in whole surfaces is very evenly and soft, no color change
Light Source	high Quality and high brightness 2835SMD LED,low attenuation, long lifespan of above 80,000hours,lower power consumption, energy saving, 80% are saved
Power supplier	the working power is DC12V,more safe in application , power supply with CE,UL and ROHS Certifications
Installation	wall hanging
Accessorie	be fixed with special hanging kits,which are convenient to mount and looked elegant
Packing	each will be packed individually, and several pieces will be packed in one master carton. angles on the master carton protected by hardboard.
Item	Black light box for movie poster and restaurant

Application of light box
Junlong Light box advantage
1.Extremely thin: LGP(light guide panel) technology makes the light box very slim, thickness
is only 8-30mm.

2.High brightness, very steady: highest level A acrylic panel and self-developed silk print ink
makes the light box has super brightness which is 30% brighter than other light box.
Uniform and soft light, not easy to get yellowing, makes the graphic looked very natural and real.

3.Power saving: we use imported LED SMD2835 strips as light source, it makes the light box
has very low attenuation which is less than 10% in the first 8,000hrs. Long lifespan which reaches
100,000hrs. More than 75% power can be saved compare to traditional light box.

4.Strict producing process: frames connect perfectly, seam joint between frames is less than
0.2mm, screws can not be seen when opening the front cover, it's very beautiful and elegant.

5.Easy to change poster: magnetic design or snap frame design, it's very convenient to change poster.

6.Frame color: frame color can be customized according to customer's request.

7.Power adapter: DC12V certificated power supplier, safe and reliable.

8.Certification: Passed CE certification, some of the products have obtained the patents.

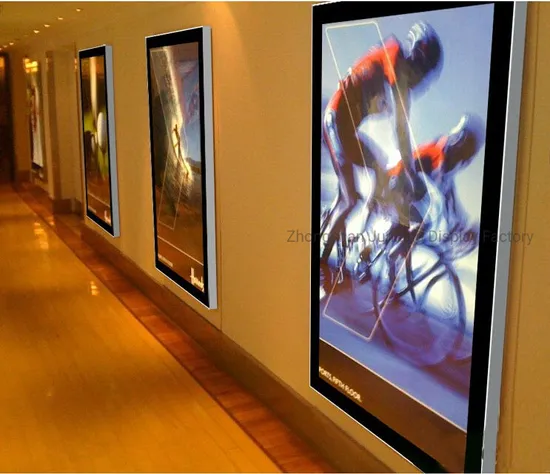

Applications:
The Frameless Aluminum Magnetic Light Box Led Advertising Display
Menu Board is Widely used in airport,station,commercial shop,shopping mall,fast-food restaurant menu,movie houst and public places,etc.



Service:
1. Customers' designs are welcomed.
2. Installing instructions, customers' sizes and colors are available.
3. Posters with customers' digital files can be printed and installed into light boxes.
Company profile
Zhongshan Junlong Display Factory was established in 2003, specialized in producing edge-lit light box.Occupy area of 8,000 square meters and has the ability of producing 30,000pcs light boxes and 100,000 sq.m diffuser board per month.With senior engineers' professional expertise and continuing research, we have got CE certificate for our products,some have obtained national intellectual property.
Showroom
FAQ:

1.Q: Are you a factory or trading company?
A: We are a factory, OEM, ODM service is provided.

2.Q: What's your payment term?
A:T/T30% deposit,then pay balance 70% before delivery.

3.Q: How to order your led magnetic light box?
A:you can ask us to send you a Performa invoice for your order. We need to know the following information for your order.
1) Product information : Size,Quantity
2) Delivery time required.
3) Shipping information: Company name,Street address,Phone&Fax number,Destination sea port.
