Famou Automatic Pig Equipment 60mm Chain Disk Automatic Pig Feeding System Used in Auto Feeding System

Product Description

FAMOU Automatic Pig Equipment 60mm Chain Disk Automatic Pig Feeding System Used In Auto Feeding System
Product Description
The pig disc chain automatic feeding system is a modern and advanced feeding equipment used in pig farming. This system consists of a network of pipes, rotating discs, chains, and feeding stations that work together to deliver precise amounts of feed to the pigs at designated locations.
The system is automated and programmed to distribute the feed accurately to each feeding station in the pig barn. It operates by conveying the feed through the pipes, rotating discs, and chains, delivering the feed to the feeding stations in a controlled and efficient manner.
The feeding system can be customized to meet the specific dietary needs of different groups of pigs, ensuring that each pig receives the appropriate type and amount of feed. This personalized feeding approach helps in improving the health and growth of the pigs.
The pig disc chain automatic feeding system streamlines the feeding process on the farm, reduces labor requirements, and enhances efficiency and productivity in pig farming operations. It represents a technological advancement in pig farming that contributes to better management practices and improved overall performance of the farm.
Product Parameters

CHAIN DISK FEEDING SYSTEM SPECIFICATION
Product Name	Chain Disk Feeding System
Keywords	Chain Disk Feed Delivery System
Voltage	380V
Frequency	50Hz
Chain Disc	60mm
Shell	Stainless Steel
Shell Wall Thickness	1.5mm
Feed Tube	275g/m2 Galvanized
Wall Thickness	1.5mm
Power	1.5kW-2.2KW
Protection Level	IP55
Conveying Speed (Horizontal)	1500kg/h
Maximum Conveying Distance	300m,360m
Feature	Save Time and Save Breeding Cost
MOQ	1 Piece

Voltage	Power	Protection Level	Conveying Speed (Horizontal)	Maximum Conveying Distance	Galvanized Pipe
380V/50Hz	1.5kW	IP55	1500kg/h	300m (12 corners)	Φ60*1.5
380V/50Hz	2.2KW	IP55	1500kg/h	360m (12 corners)	Φ60*1.5

Product Structure

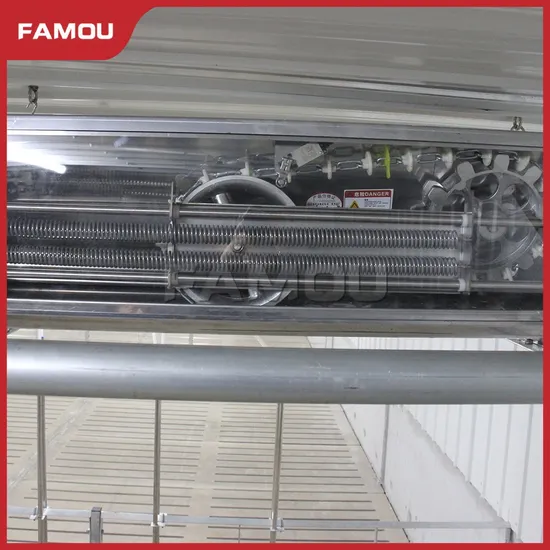

Drive Unit
A steel sprocket wheel drives the chain as it passes through the drive unit while the chain tensioner assembly maintains proper tension on the chain for optimal performance
Two safety switches; one located on the chain tensioner and the other on the access cover, prevent chances for injury or damage to the system's components
A clamping safety rod provides additional increased operator safety compared to cable or spring options when the drive unit is open
Disk Chain
Systems feature superior grade hardened steel chain that is stronger than galvanized chain, which is weakened by heat during the galvanizing process
Our multi-directional chain cannot be incorrectly installed and eliminates the need for frequent tightening common with cable style systems
The low friction disks gently convey all common pig ration mixtures while minimizing damage or feed separation compared to flexible auger systems
Clean Corner Wheel
The black corner wheel housing is fabricated from a tough reinforced polymer with a dome peaked lid to prevent the accumulation of water or moisture
The transparent swing down door is molded from impact resistant polycarbonate with 3 toggle latches that hold it securely in place
Molded metal inserts with rubber seals reinforce critical axle wear points to prevent cracking and eliminate moisture from entering the housing
Durable Corner Wheel
The corner wheel housing is constructed of durable, heavy-duty fiberglass reinforced polymer, which is stronger than polypropylene and designed to withstand years of constant use in production environments
A heavy cast iron corner wheel turns on a stainless steel axle and a low-friction, encapsulated ball bearing
The self cleaning design prevents feed build-up in the wheel housing providing long-term reliability
Proximity Switch
Nursery and finishing pigs can be sorted from any pen as needed since it doesn't rely on a hopper/feeder switch to activate feed cycles Empty farrowing rooms or stalls will not create issues with pig movements and feed availability
Feed availability is easily controlled at each individual output location by opening/closing the feed drop or sow drop
Available kit and replacement parts install directly on the feed line for easy access and adjustment
Details
Company Profile

FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are a factory.
Q2: What are your terms of payment?
A2: Payment <= 5000 USD, 100% in advance. Payment > 5000 USD, 30% T/T in advance, with the balance due before shipping.
Q3: How long is your delivery time?
A3: Generally, it is 20-40 days, depending on the quantity.
Q4: Do you provide samples?
A4: Yes, we offer the sample.
Q5: Whether you could make our brand on your products?
A5: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Q6: Whether you could make your products in our color?
A6: Yes, The color of products can be customized if you can meet our MOQ.
Q7:What can you buy from us?
A7:poultry farming equipment, pig farming equipment, Breeder Farming Equipment, Layer Cage Equipment, Broiler floor breeding equipment
